Spectacular sawing!
Your entry into the world of automation: the new WALLTEQ M-300 multifunction bridge. It was made to help your business move forward. The WALLTEQ M-300 can trim, saw (NEW!), staple, mark, nail and manufacture with the highest level of precision. It needs only minimal space, and the quick tool changer and clever functions make it even more flexible. The result speaks for itself. This is certainly the case on the construction site and even more so in your balance sheet: Expect up to 30% more productivity.
Benefits
- Ideally tailored to the needs of woodworking shops
- The high level of process flexibility supports woodworking shops with a wide product portfolio
- Meets increasing demands in terms of prefabrication and wall structures
- Efficient processing of soft wood fiber insulation panels thanks to optimized suction
- Fully automatic data transfer from all common CAD programs for timber construction
- Easy to operate with intuitive powerTouch user interface
Images
-
![]()

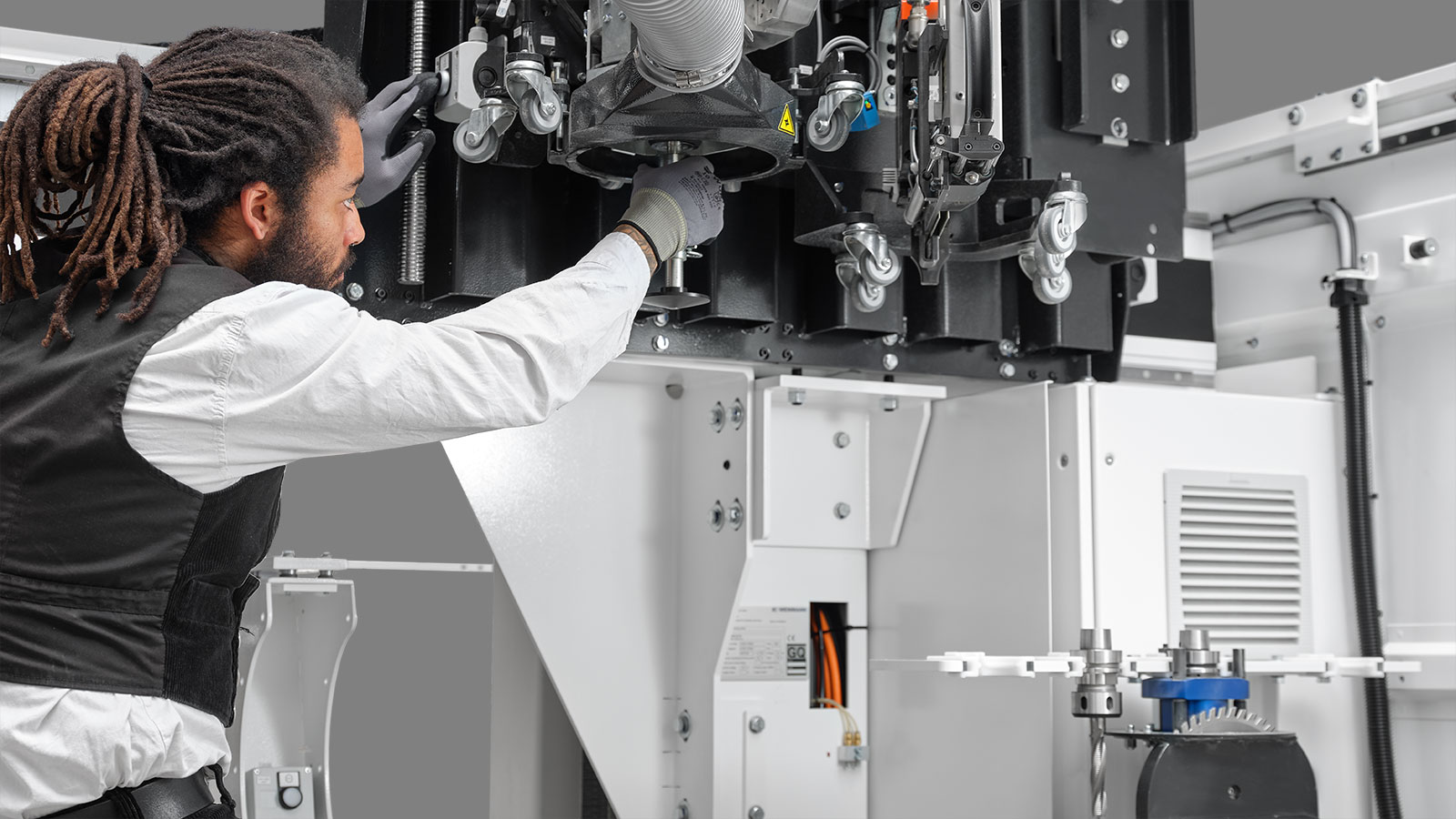

The spindle of the WALLTEQ M-300 is equipped with a manual change function. -
![]()
The large sawing tool with HSK chuck enables extremely precise processing of soft wood fiber insulation panels. -
![]()

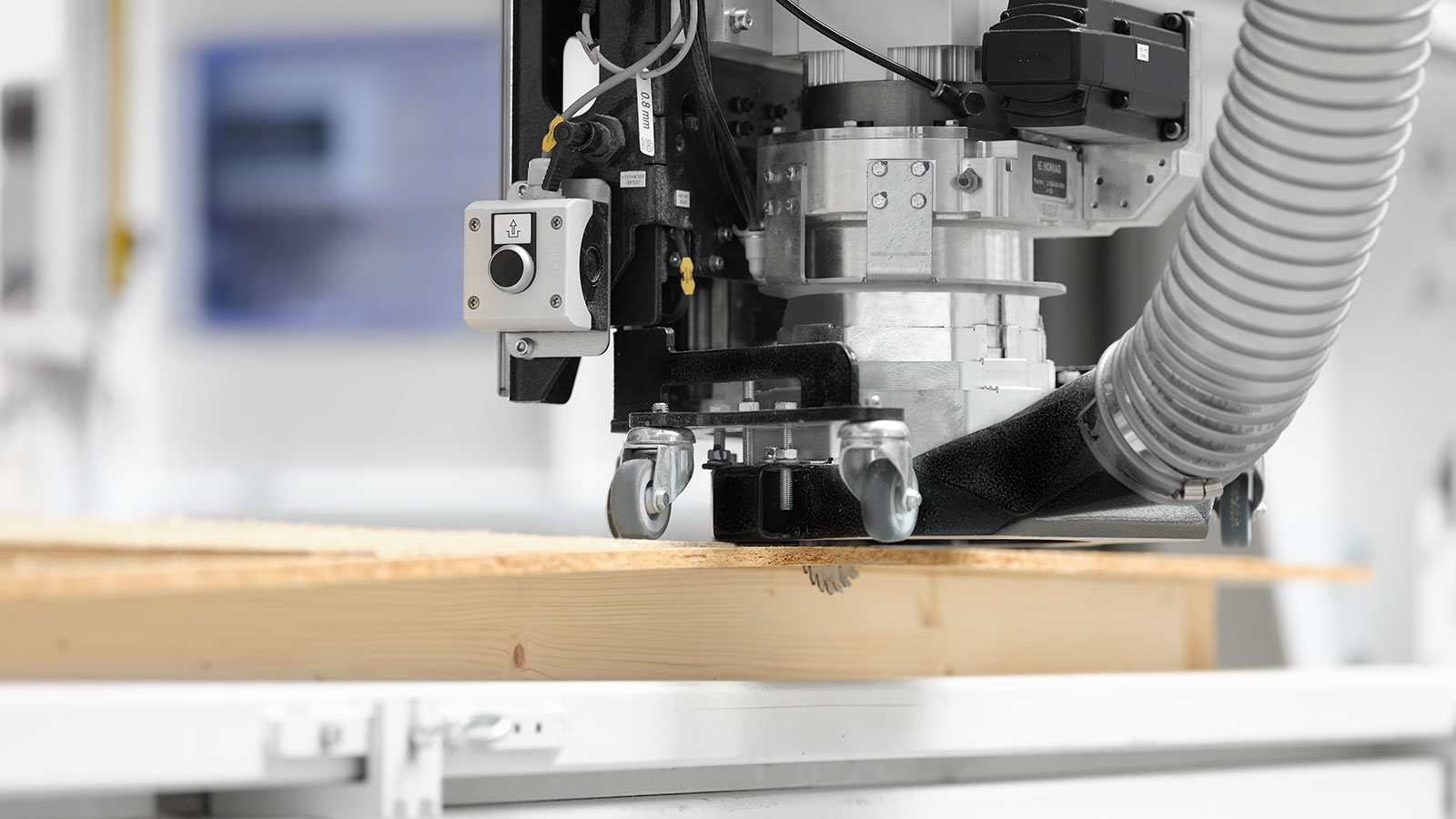

Ideal processing of sheathing in the field of vision and the perfect addition to the large sawing unit in particular for plasterboard processing. -
![]()
Perfect dust minimization: thanks to the compact deduster, you can process different materials comfortably. -
![]()
With the optional fastenerSwitch, additional fastening units can be quickly inserted, which significantly increases the flexibility of the multifunction bridge. -
![]()

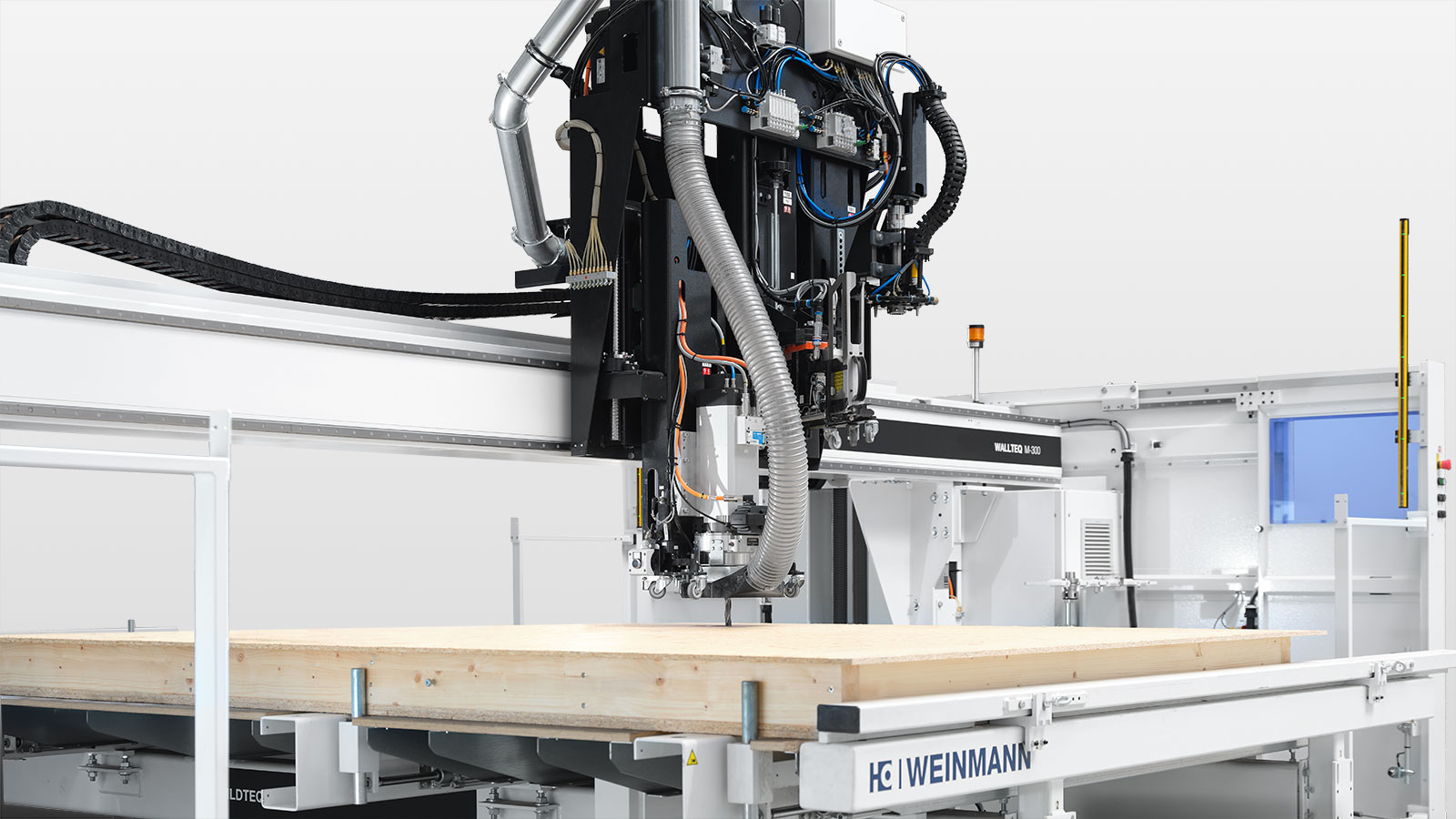

With the high-performance trimmer, any cut-outs, such as socket holes, are child's play. -
![]()

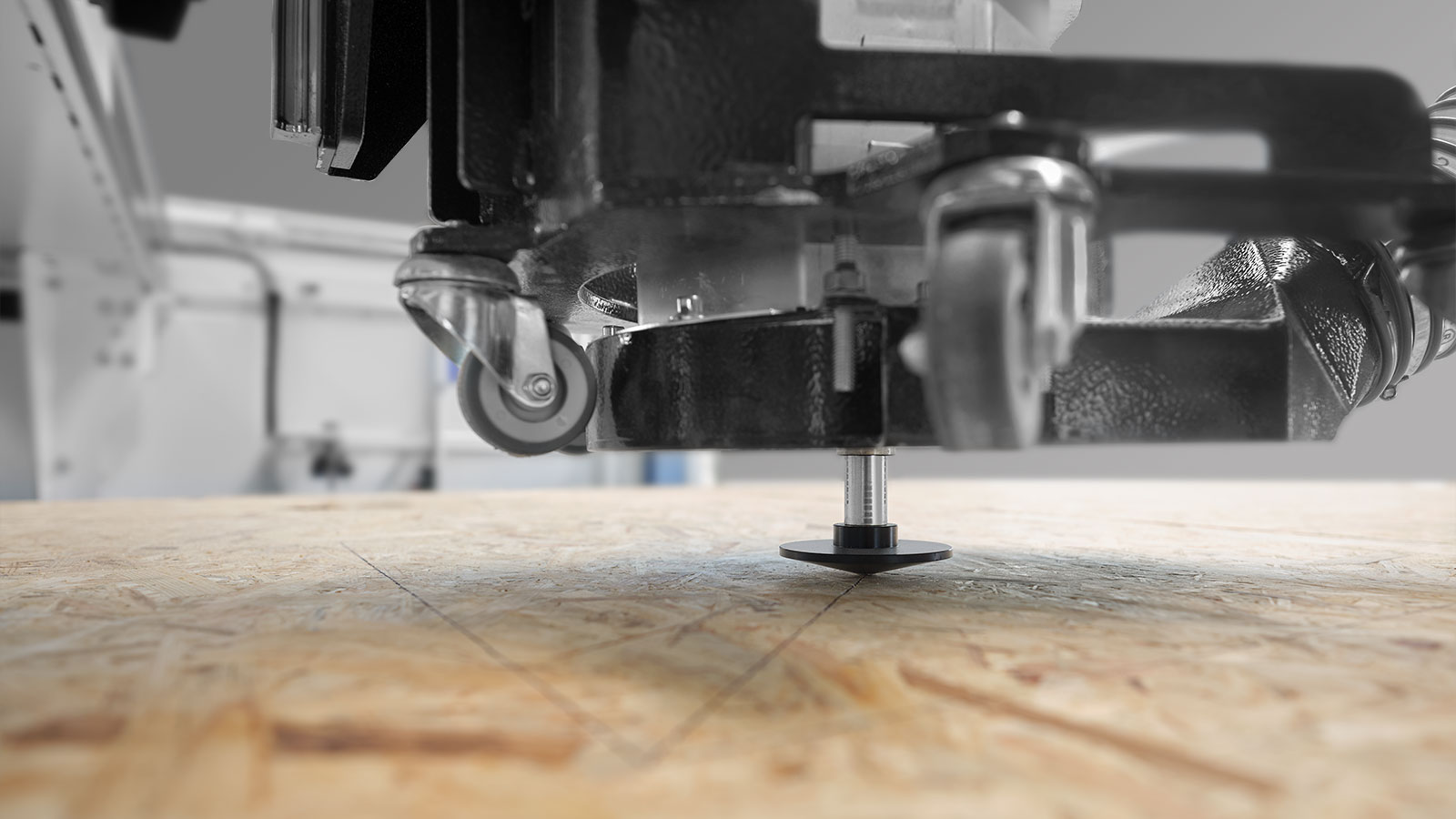

The marker can apply predefined drawings from the data record, which simplify further processing. -
![]()

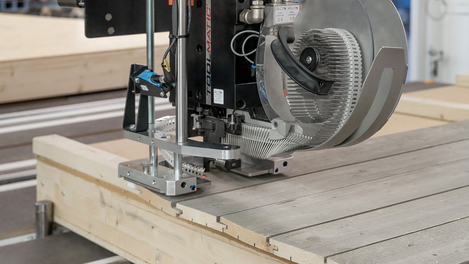

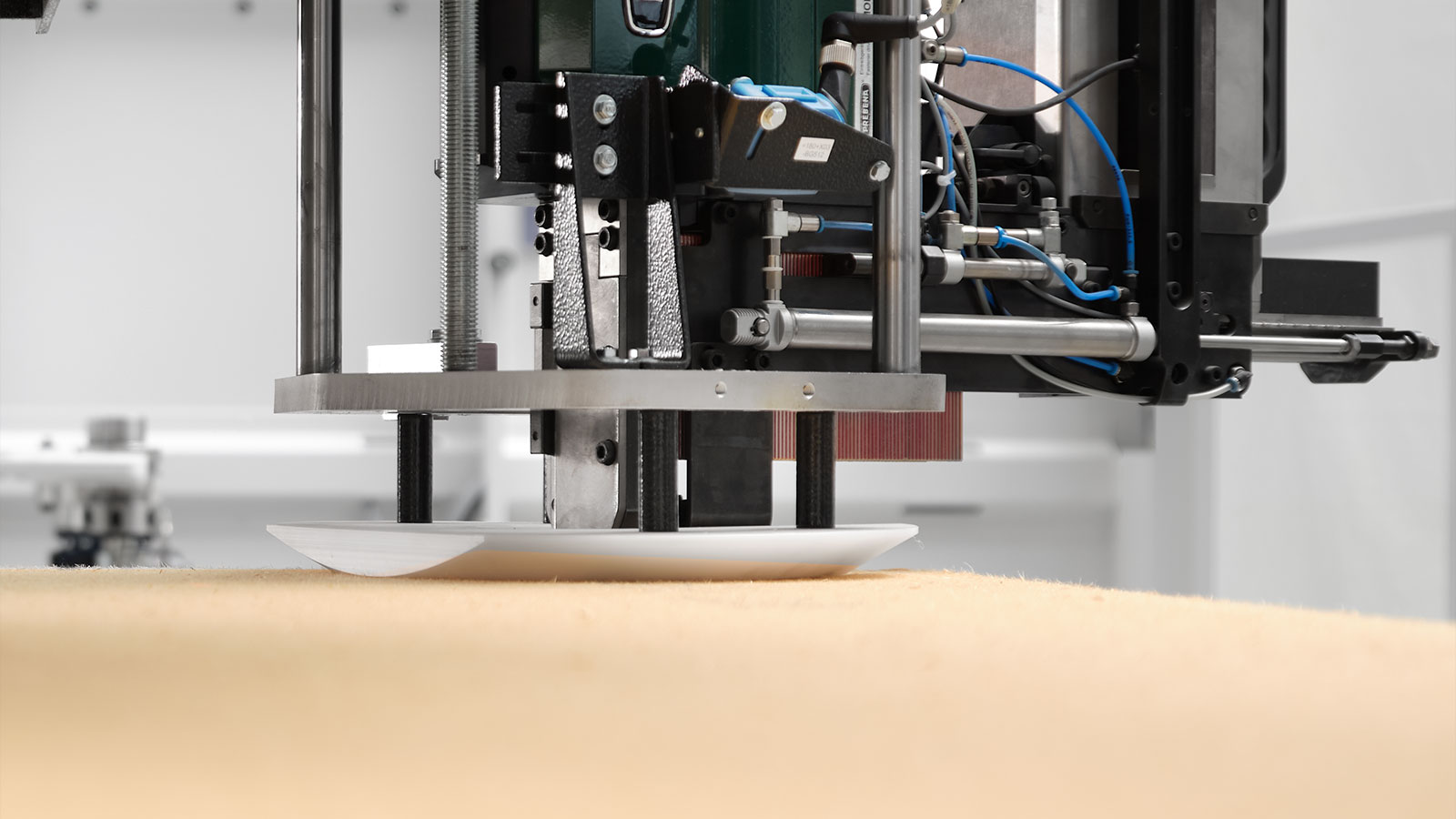

Sliding shoe for stapling and nailing devices enables material-friendly attachment. -
![]()
Easy operation with the intuitive operation concept powerTouch
Features
-
13.2 kW spindle with manual change function between saw, marker and trimmer
-
Sawing unit for precise and fast processing with a cutting depth of up to 80 mm and saw protection with integrated suction technology
-
Optional second sawing unit (can be inserted manually via HSK interface) for precise processing of sheathing layers up to 30 mm thick with an optimal suction result
-
Fully automatic processing using a trimming unit with a depth of up to 90 mm and trimming protection with integrated suction technology
-
Improved piggyback suction device with a suction capacity of 2.2 kW and compact deduster
-
Suitable for use for wall elements as well as roof and floor elements
-
Existing work tables can be combined with the multifunction bridge
-
Can be integrated into a production line at any time
-
Optional: fastenerSwitch quick-change system for up to four fastening units in order to be able to react more flexibly to different types of fastenings and/or material
-
Optional: increased processing width to 3.80 m
-
Optional: swivel unit for fastening units for inclined insertion of fastening material; this is particularly in demand for narrow frame work designs (2x4 market)
Technical Data
| Processing depth max. [mm] | 80 |
| Piggyback suction device performance [m3/h] | 750 |
| Electrical connection [kW] | 15 |
| Compressed air consumption [NI/min] | approx. 500 during processing approx. 1500 when fastening (depending on equipment) |
| Pneumatic pressure [bar] | 8 |
Technical information is subject to change!
Here's how your colleagues produce
Videos
Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.
» Privacy Policy
Entry into automation with the WALLTEQ M-300
The Braumandl carpentry company has made the move into automation and now works with the new WALLTEQ M-300 multifunction bridge, among other things.
