Panel dividing saws SAWTEQ S-200

Panel dividing saws SAWTEQ S-200

The right saw for cutting panels horizontally in the crafts sector: attractively priced, efficient and upgradeable.

The SAWTEQ S-200 offers you exactly what you need in a woodworking shop to cut panels horizontally: plenty of power, precision and flexibility. That’s because this well-equipped saw can easily be upgraded at any time. You remain flexible and get a cutting solution that can grow in line with your requirements.

Benefits

  • Very good price/performance ratio
  • Low-noise and virtually maintenance-free saw carriage
  • Cutting lengths up to 4,300 mm
  • CADmatic 5 control system, the same as for the larger models
  • intelliGuide Classic – operator assistance system
  • Power Concept Classic

Highlights

SAWTEQ B-130 with further, optional clamp and Power Concept Classic for maximum flexibility and efficiency in cutting

With the Power Concept Classic (optional), two strips with different cross-cuts can be cut to length together. For up to 30 % more output

The start-stop bar on the first air cushion table (option) enables a convenient program start, even when handling large planels or strips.

Saw blade change with Power-Loc

The easy-to-use Power-Loc quick-release system speeds up  blade changes on both main and scoring saw.

Features

  • Chopping edge on the right-angled fence

  • Ready for simple stock control connection

  • Control software CADmatic 5
    – Intuitively understandable
    – Full HD widescreen multi-touch monitor
    – Harmonized user interface powerTouch
    – The new 3D assistance graphic supports the operator and is intuitive to operate
    – Ready for connection to tapio
    – Graphically supported diagnostics

  • Quick-release system Power-Loc makes changing the saw blade of the main saw and scoring saw easier and faster

  • All-round protective guard for more storage space under the rear machine table

  • Manual pressure regulation for processing pressure-sensitive material, located in the operating area and so easily accessible

Technical Data

Saw blade projection [mm]65 (80 or 95 as option)
Cutting length [mm]3,200 / 3,800 / 4,300
Program fence speed [m/min]up to 80
Saw carriage speed [m/min]up to 80 (up to 120 as option)
Main saw motor [kW]7.5 (9.2; 11 or 18 as option)
Monitor24" full-HD multi-touch display
Operating softwareCADmatic 5

(Previous product name: Panel dividing saw SAWTEQ B-200 | HPP 200)

Automation & Further Functionality

intelliGuide Classic

The innovative intelliGuide Classic operator assistance system (optional) guides the operator through the machining process with LED light signals on the cutting line

module45 – the cutting-edge option for precise bevel cuts

module45

Bevel cuts on your horizontal panel dividing saw. With module45, you can now produce all cuts, including bevels, using just one saw. Work efficiently and flexibly without changing station, at infinitely variable angles ranging from 0 to 46 degrees.

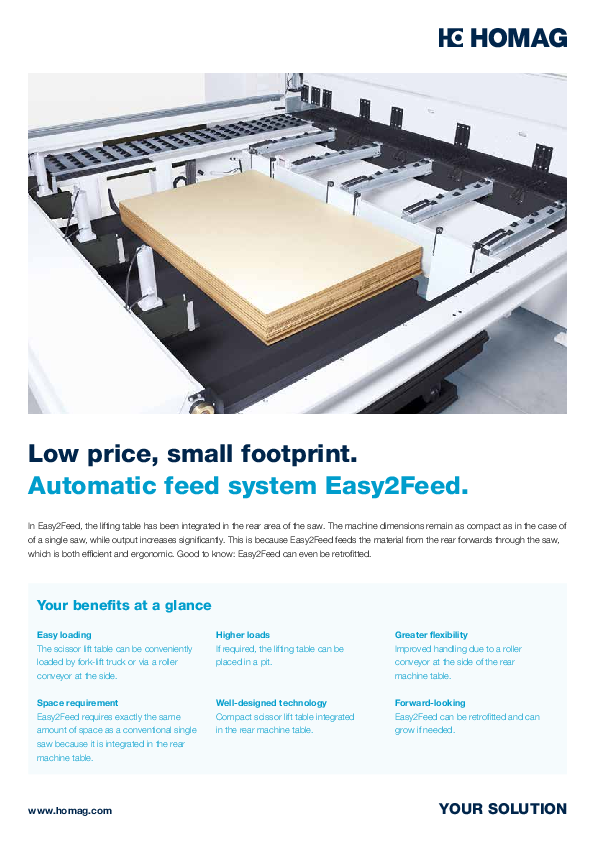

Easy2Feed

Easy2Feed

Easy2Feed for saws with a cutting length of 3,800 mm. This optional feature saves time and space, is very ergonomic and can be retrofitted. The core element is a compact scissor lift table, which can be conveniently loaded by forklift truck.

STORETEQ P-300 | P-500

Smart feeding together

STORETEQ P-310|P-510 and P-320|P-520

Save space together

Here's how your colleagues produce

Videos

Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.


» Privacy Policy

Panel Dividing Saw SAWTEQ B-200

Immerse yourself in the world of cutting and get an overview of the appearance and functions of the Panel Dividing Saw SAWTEQ B-200 horizontal panel sizing saw.

Brochures

Product Comparison

Single saws for cutting


  SAWTEQ S-100 SAWTEQ S-200 SAWTEQ S-300 SAWTEQ S-400 SAWTEQ S-500
Cutting length [mm]3,200 | 3,8003,200 | 3,800 | 4,3003,200 | 3,800 | 4,300 |  5,6003,200 | 3,800 | 4,300 | 5,6003,200 | 3,800 | 4,300 | 5,600 | 6,500
Saw blade projection [mm]6565 (optional 80 or 95)80 (optional 95)110 (optional 125)150 (optional 170)
Program fence speed [m/min]up to 60 up to 80up to 90up to 90up to 90
Saw carriage speed [m/min]up to 60 up to 80 (optional up to 120)up to 150 (optional 170)150 (optional up to170)up to 130 (optional 150)
Left handed machine possible--
