Perfect packaging, fully automatic
The Cardboard-box closing machine PAQTEQ S-200 safely and economically closes completely packed cardboard boxes with side closure in a fully automatic way. The result is a cleanly closed cardboard box, which optimally protects products during transport. Whether batch size 1, small series or serial production, the PAQTEQ S-200 flexibly adjusts to your requirements and demands.
Benefits
- Consistently high packaging quality by sealing the cardboard boxes using hot-melt
- High performance, up to 10 cardboard boxes/min in series production
- Flat packaging from minimum box height 22 mm
- Can work in stand-alone operation as well as being integrated into a complex packaging line
- Intuitive operation thanks to powerTouch
Images
-
![]()

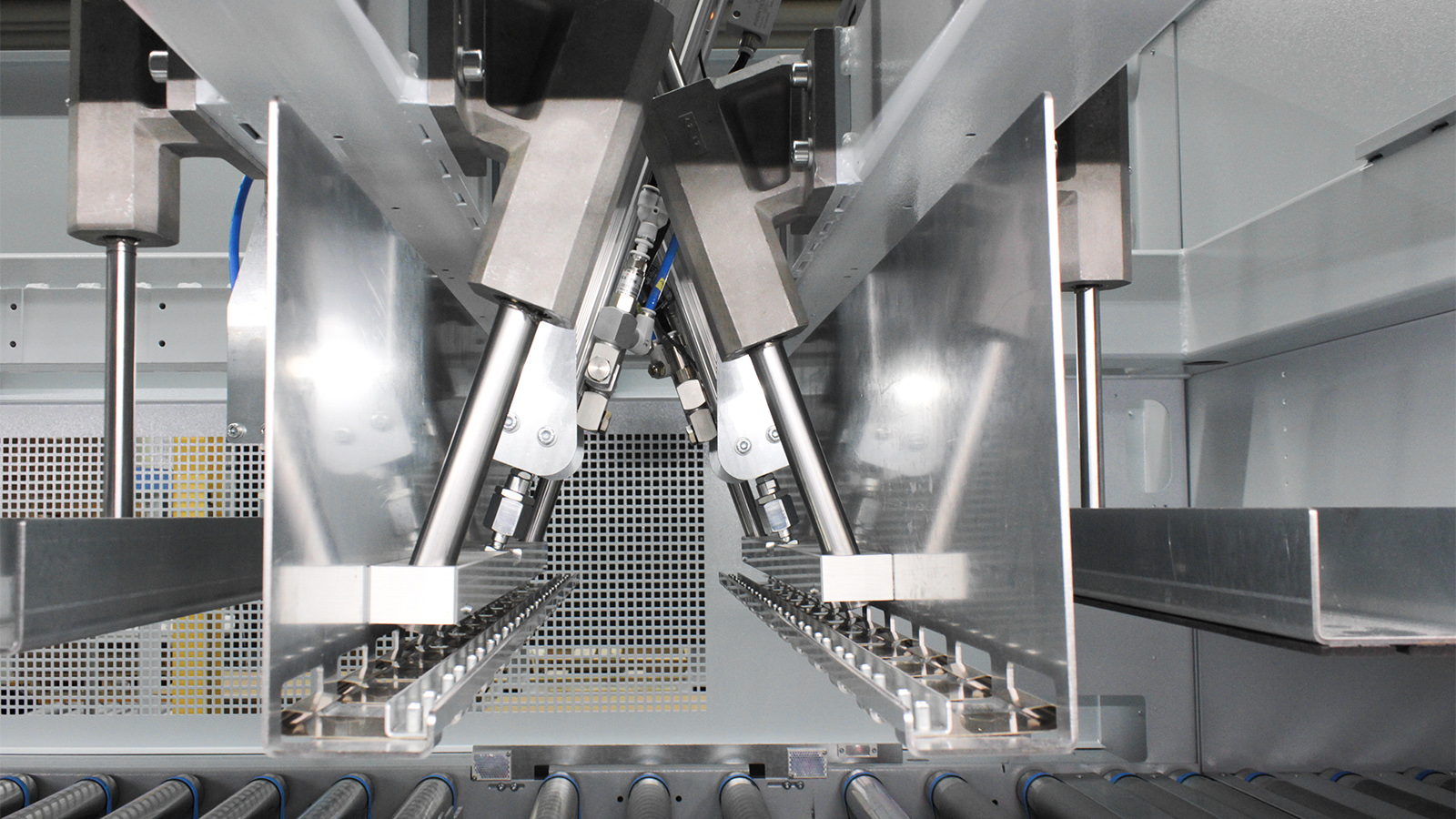

Automatic closing of ready-packed cardboard boxes with side closure. -
![]()

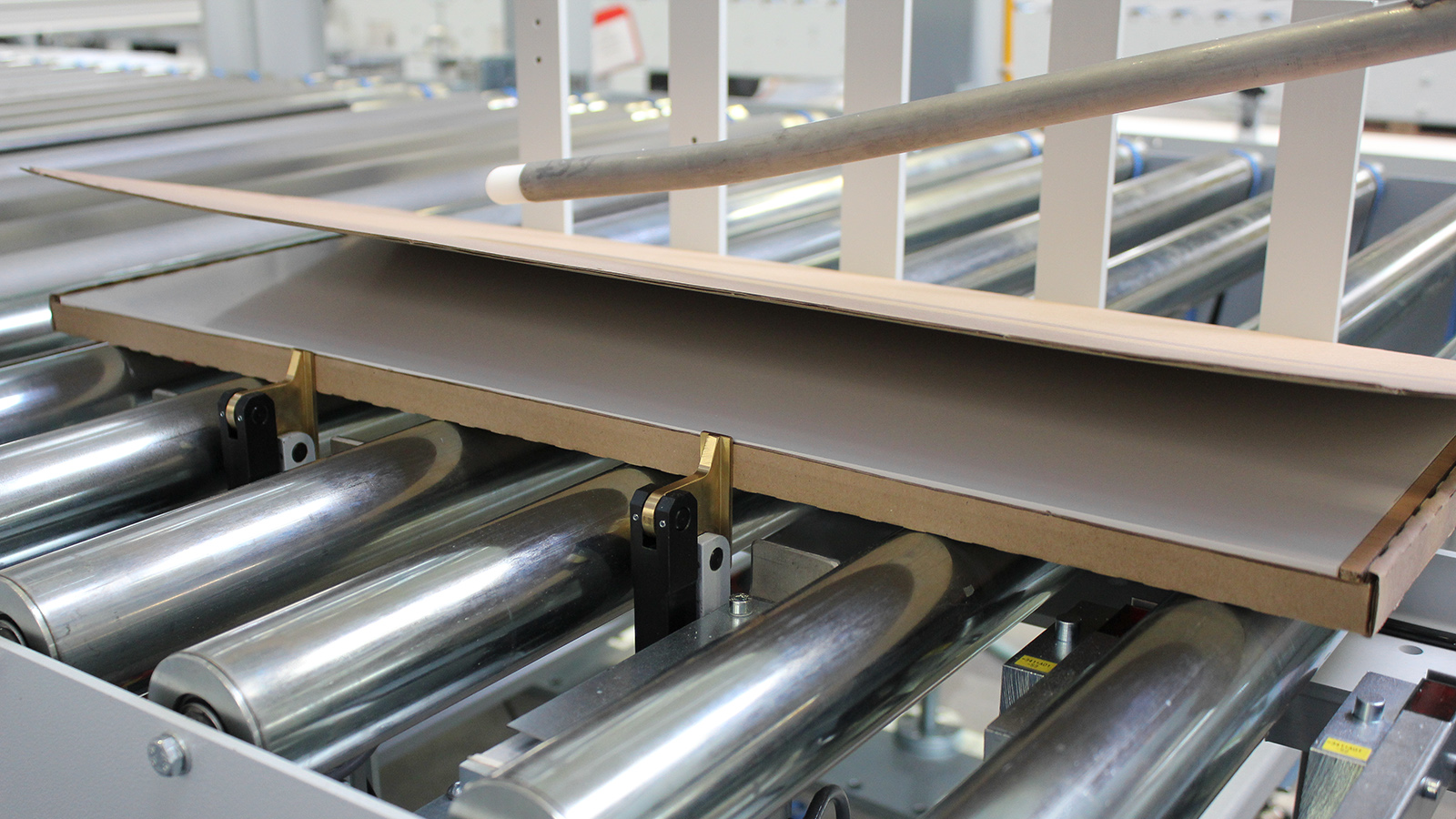

Batch size 1 due to automatic cardboard box measuring at the infeed and fully automatic adjustment of the closing mechanisms. -
![]()

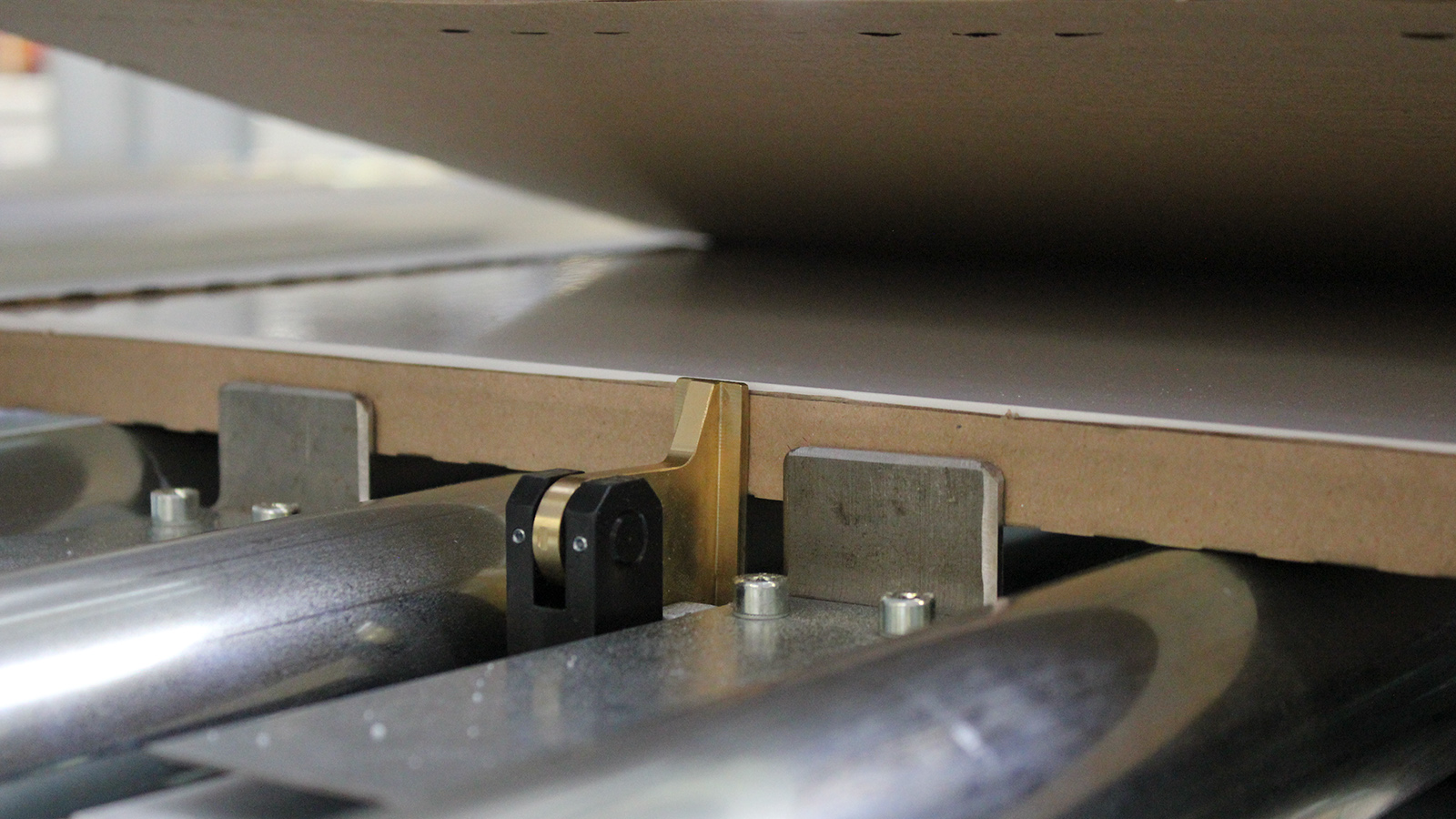

High packaging quality even at flat packaging from minimum box height 22 mm.
Features
-
Automatic cardboard box measuring at the infeed, no data input required even by using boxes with different sizes
-
Closing mechanisms adjust quickly and fully automatically to the size of the specific cardboard box
-
woodBase reference number management
-
Savings of up to 85 % thanks to hot-melt technology (compared to using adhesive tape)
Savings of up to 40 % in cardboard consumption thanks to the usage of side-closing packing designs
Technical Data
| Package length (internal dimensions) [mm] | 400 - 2,500 |
| Package width (internal dimensions) [mm] | 180 - 1,100 |
| Package height (internal dimensions) [mm] | 22 - 250 |
| Package weight [kg] | max. 80 |
| Working height [mm] | 900 +/- 30 |
| Conveying speed packaging belt [m/min] | 35 |
| Operating pressure [bar] | 6 |
| Quality of the cardboard |
|
| Thickness of the cardboard [mm] | 2.7 - 6.5 +/- 0.2 |
| Cardboard quality according to 55468 [mm] | 1-corrugation, thickness up to approx. 4.0 (Quality 1.10 - 1.40) |
2-corrugation, thickness up to approx. 6.5 (Quality 2.10 - 2.30) | |
| Control | powerTouch |
(Previous product name: Cardboard-box closing machine VKV 710)
Videos
Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.
» Privacy Policy

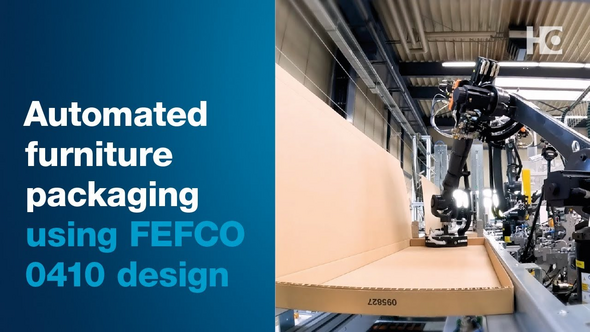

Packaging solution with 3-side sealing and automated insertion stations
The line reproduces the complete process of automated furniture packaging from folding of the cardboard box in FEFCO 0410 design, insertion of the workpieces and filling material to automatic closing, gluing and stacking of the boxes.
