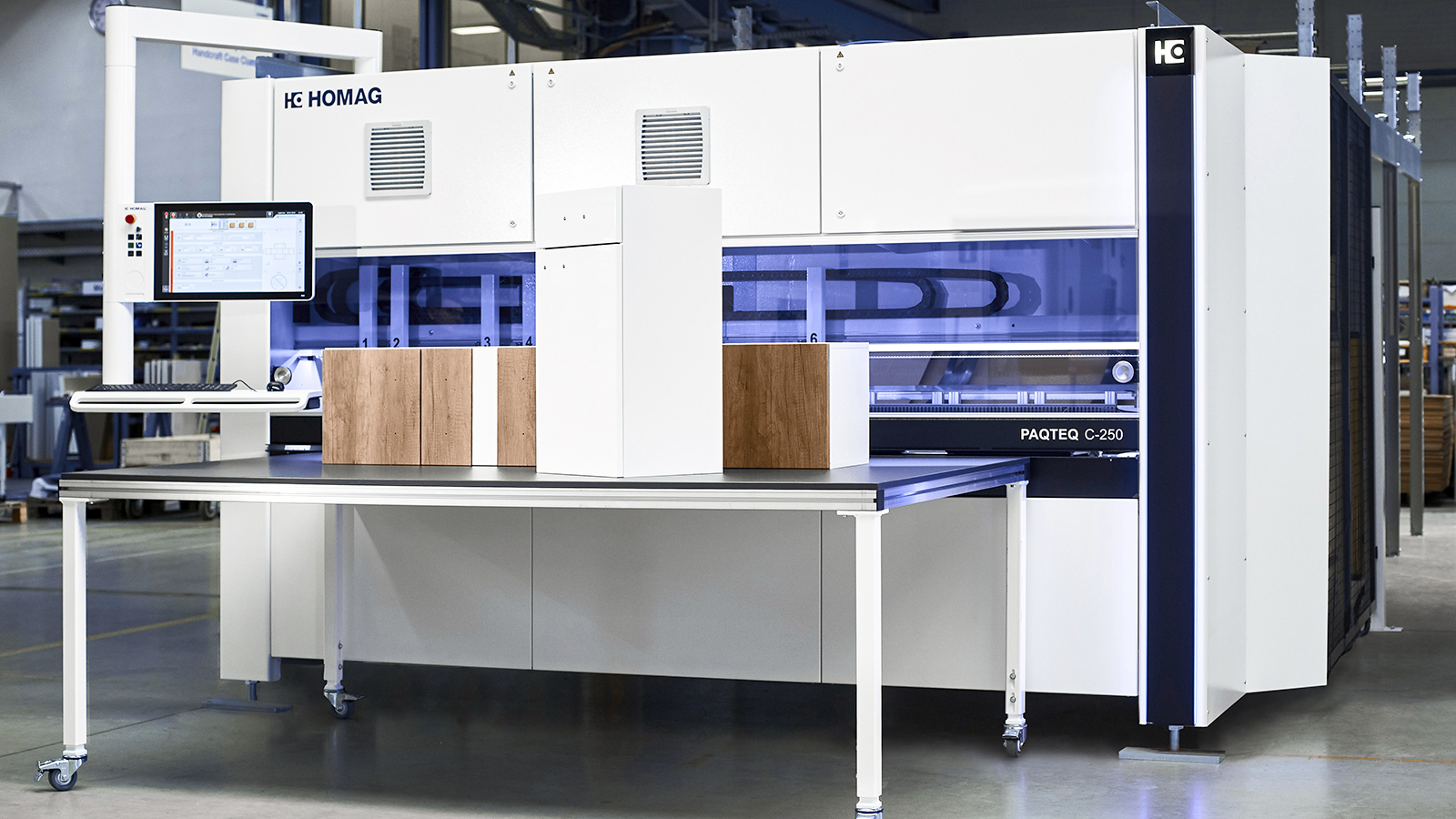

Cardboard-box Cutting and Closing Machines PAQTEQ C-250

Cardboard-box Cutting and Closing Machines PAQTEQ C-250

Customized packaging - sustainable and ecologically aware

Using the cardboard-box cutting machine you will exactly produce the packaging that you need - in optimal shape, with high volume utilization degree, and with minimum unit cost. Performance and quality are raised when compared to manual packaging. The best: Design your PAQTEQ C-250 to your own specific needs and requirements. Either as a "stand-alone" operation or integrated into a complex packaging line.

Highlights

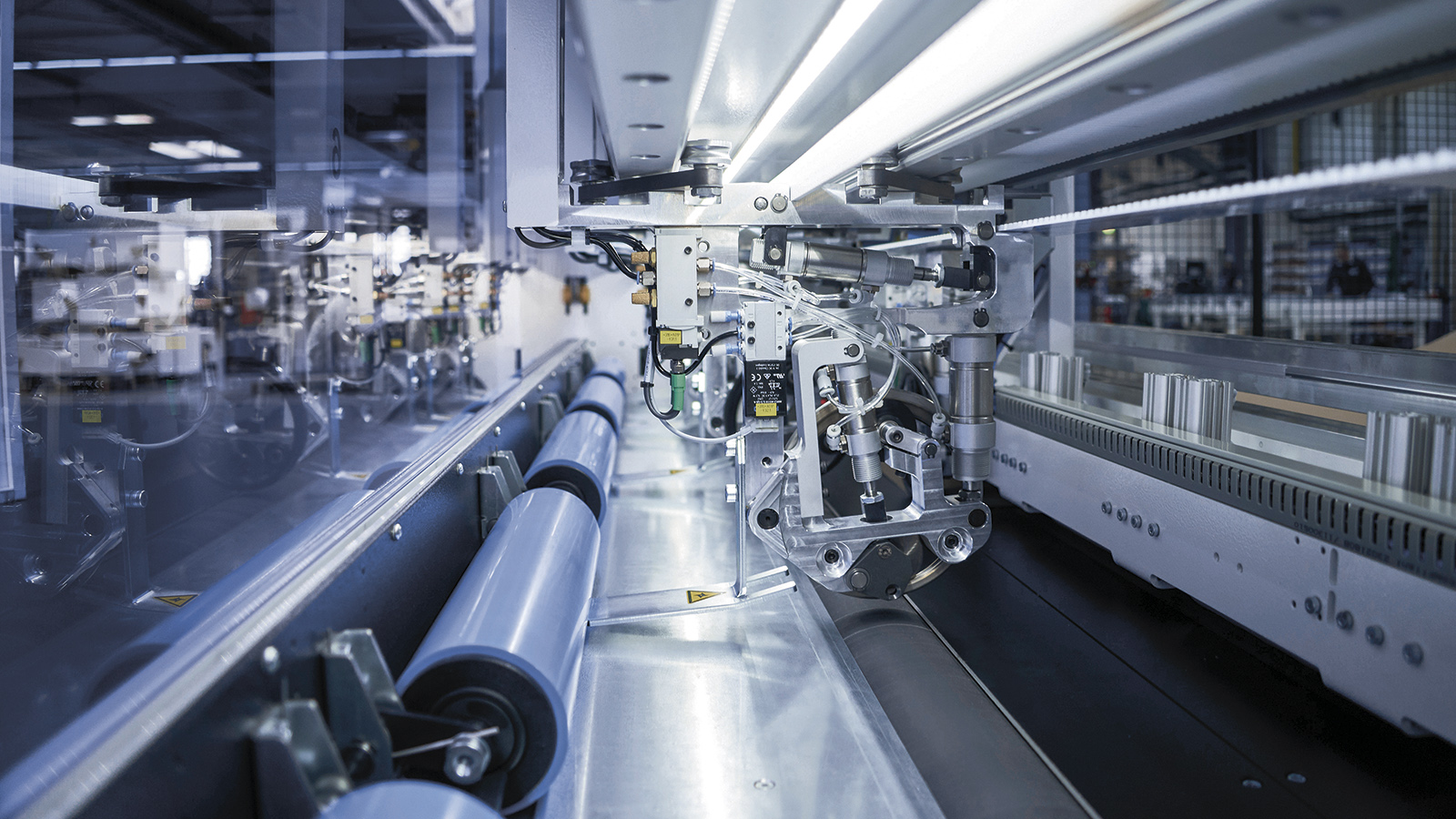

The fully automatic moving cutting tools, which can be set up quickly, allow almost any cut to be produced.

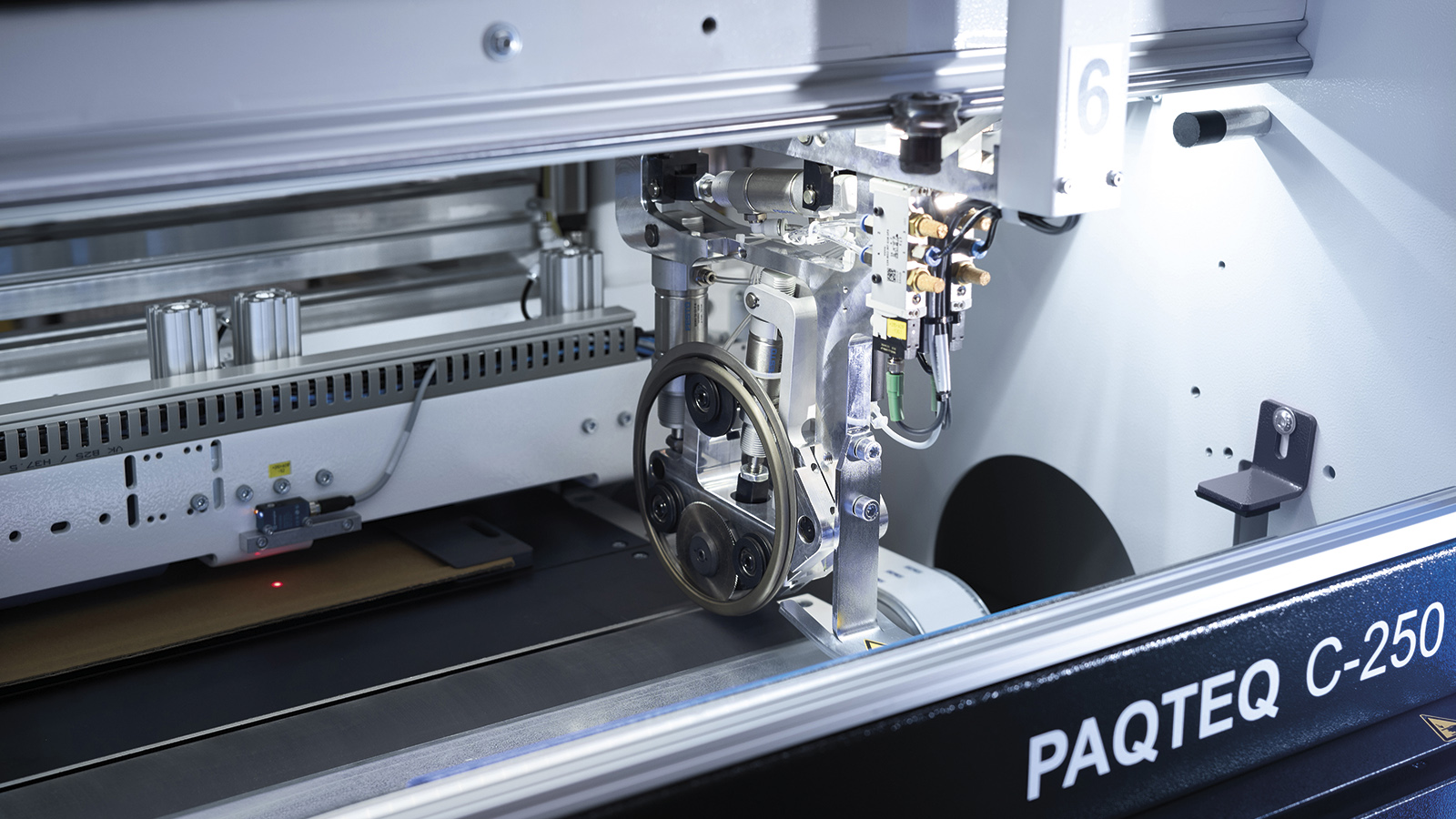

3in1 cutting tools - cutting, scoring, perforating - can be positioned fully automatically for maximum flexibility

Produces precise, individual and resource-saving packaging solutions. Not just for carcasses, but fully automated and made-to-measure just-in-time

Produces precise, individual and resource-saving packaging solutions. Not just for carcasses, but fully automated and made-to-measure just-in-time

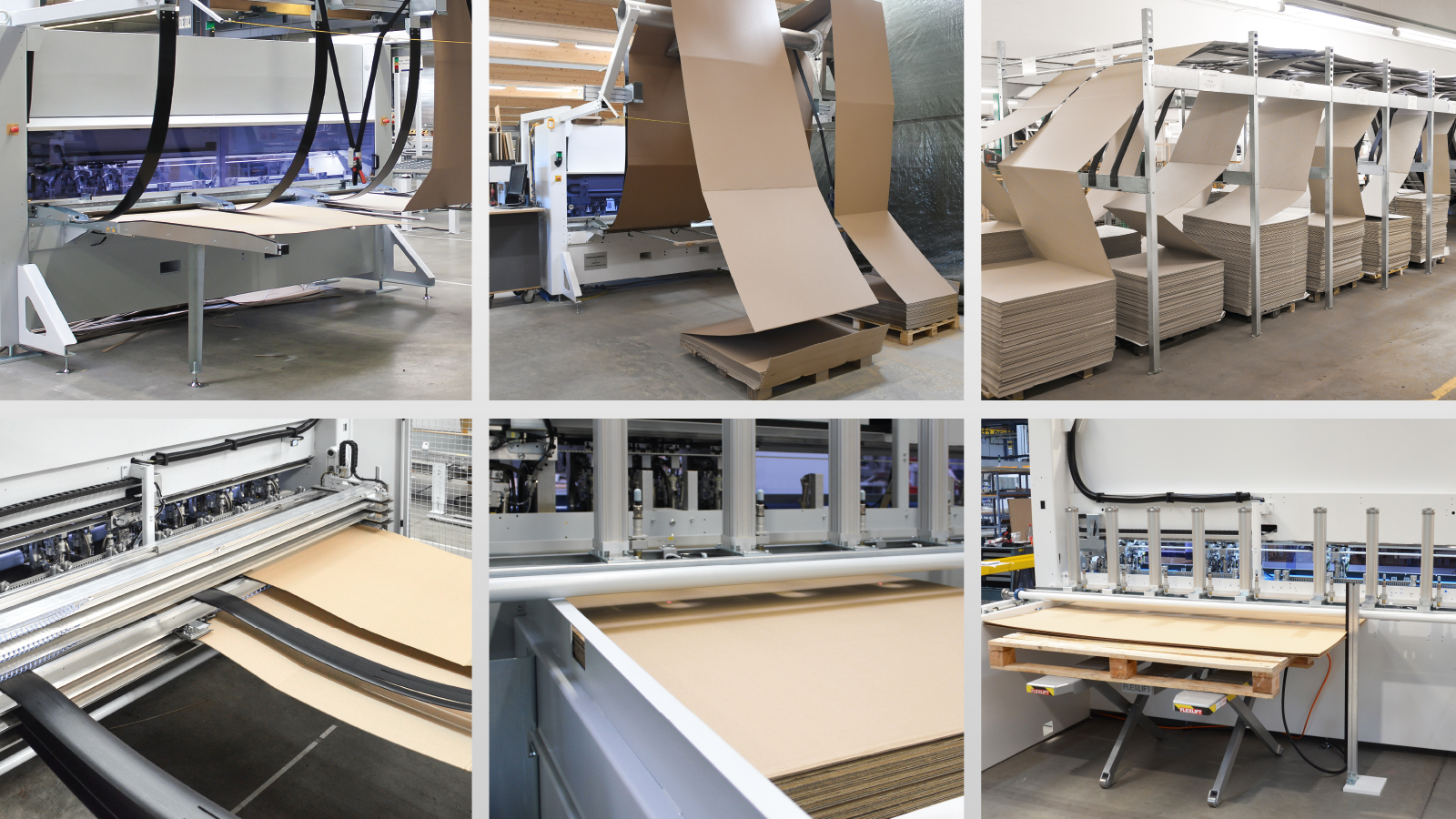

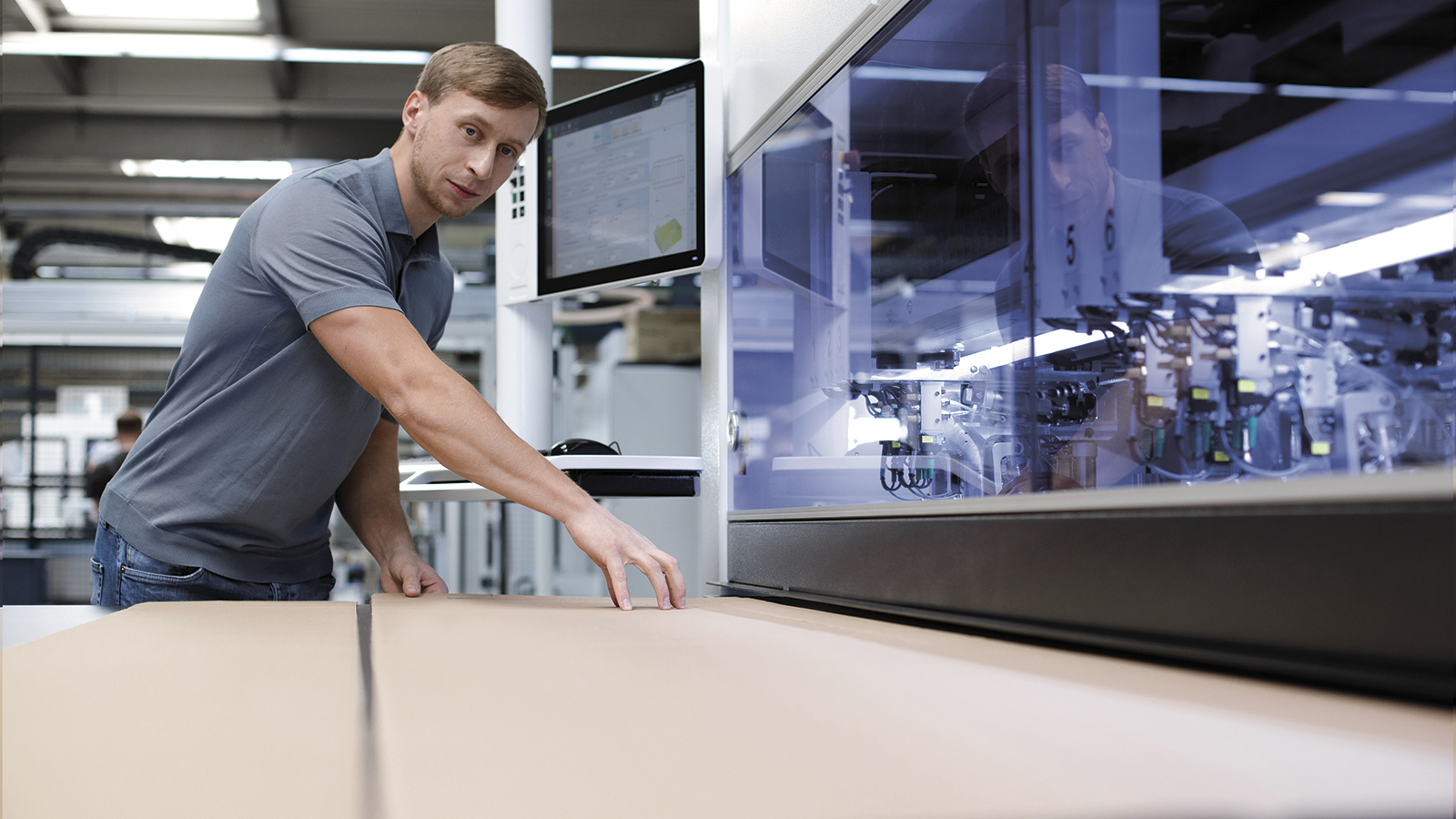

Versatile carton feeding systems - combined carton feeder, carton change system, automatic single-sheet feeder, manual single-sheet feeder from the front

Versatile carton feeding systems - combined carton feeder, carton change system, automatic single-sheet feeder, manual single-sheet feeder from the front



Features

  • Flexible cardboard feeding system with automatic access to maximum 12 different web widths thanks to side-by-side function

  • Produces the optimum carton in the required quantity as needed

  • Significantly reduces the need for packaging and filling materials

  • Storage and logistics costs are significantly reduced

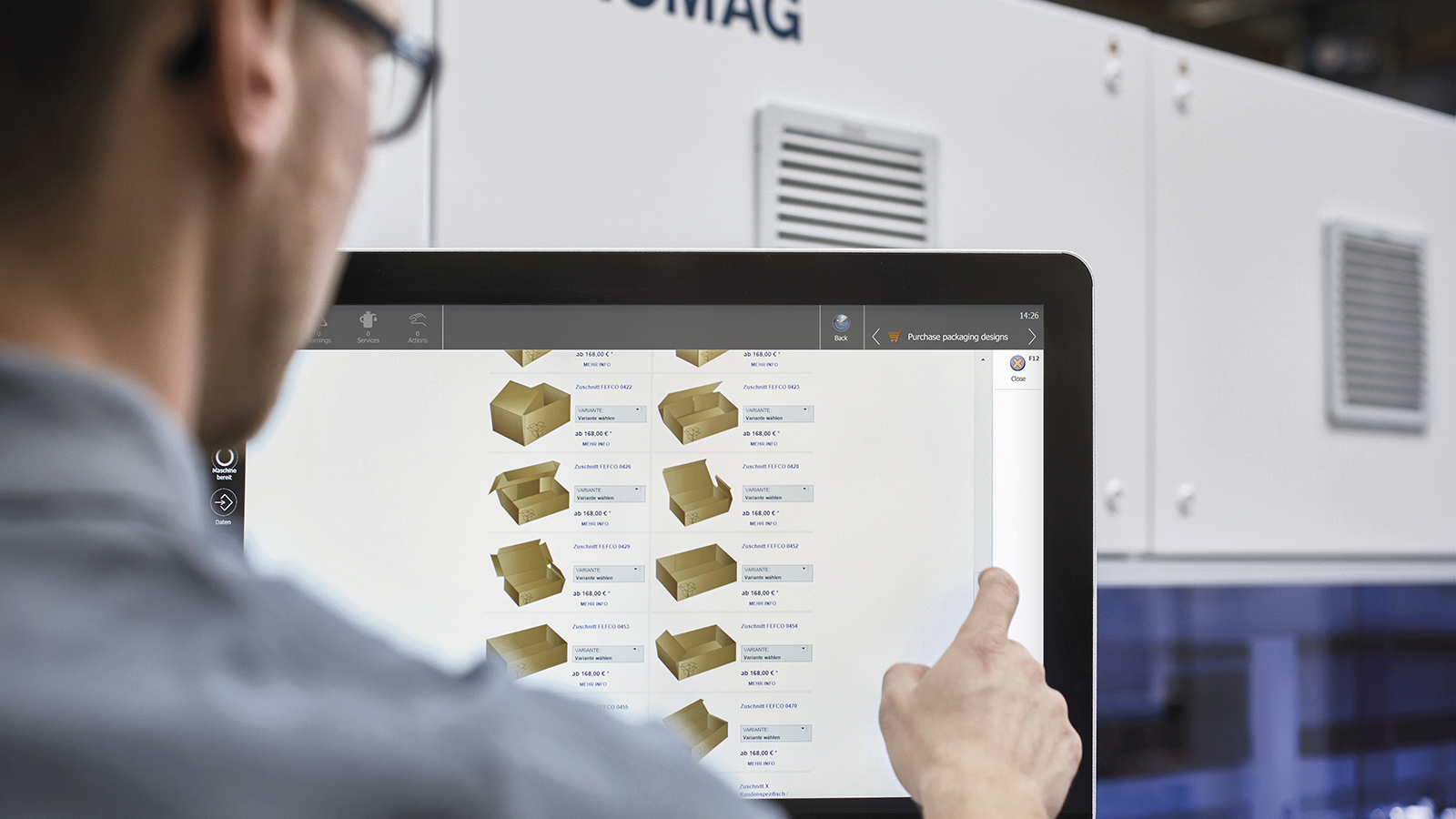

  • Versatile data flow as the basis for automatic cardboard box production. Production according to e.g. production list, barcode scanner or manual input.

  • Multi-line processing for the production of complex blanks (e.g. multi-part packaging)

  • Waste optimization through automatic selection of the web width and turning of the cardboard packaging

Technical Data

Dimensions of the cardboard



Length of the cardboard (outfeed) [mm]

300

Width of the cardboard (infeed)



Single sheet [mm]

350 - 2,500

Endless cardboard single [mm]

350 - 2,500

Endless cardboard side-by-side [mm]

max. 2,350

Stacking height incl. 120 mm pallet [mm]

max. 2,150

Cutting to size tolerance



Longitudinal direction [%]

max. 0.5

Transverse direction [mm]

max. +/- 2.0

Quality of the cardboard



Thickness of the cardboard [mm]

2.0 -7.0   +/- 0.2

Cardboard quality according to 55468 [mm]

1-corrugation, thickness up to approx. 4.0 (Quality 1.10 - 1.40)



2-corrugation, thickness up to approx. 7.0 (Quality 2.10 - 2.30)

(Previous product name: Cardboard-box cutting machine VKS 250)

Automation & Further Functionality

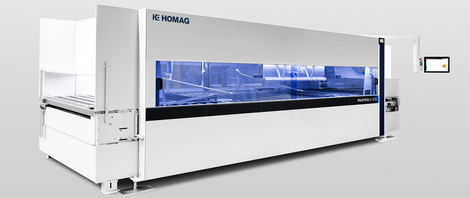

PAQTEQ S-200

Perfect packaging, fully automatic

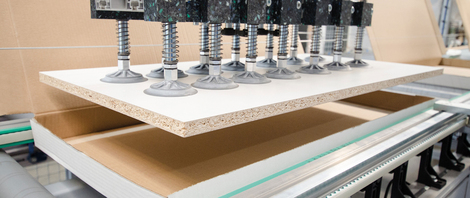

PAQBOT I-300

Insert station with robot for automatic filling of cardboard-boxes

Software

Videos

Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.


» Privacy Policy

Kartonschneidemaschine PAQTEQ C-250

Produzieren Sie mit der Kartonschneidemaschine genau die Verpackung, die Sie benötigen – in optimaler Form, mit hohem Volumennutzungsgrad und bei minimalen Stückkosten.

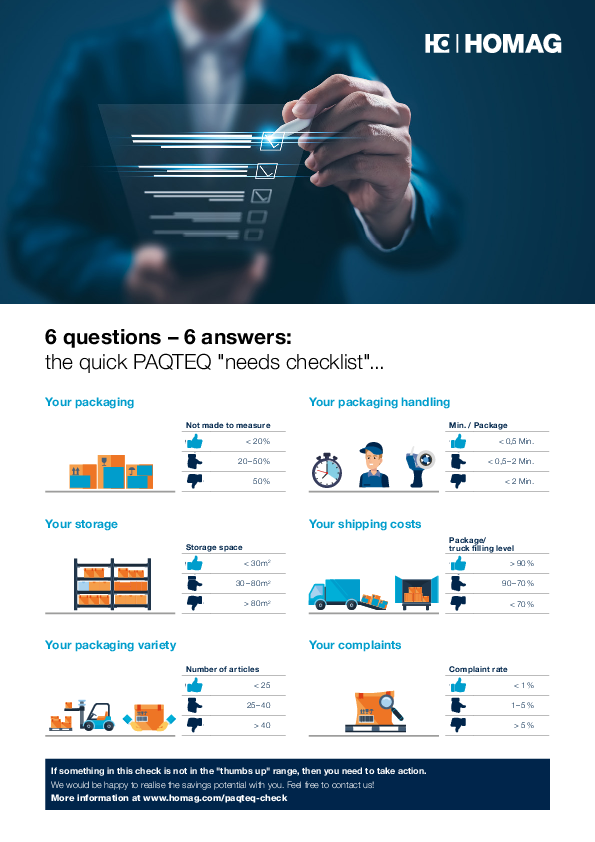

Brochures
