A highly flexible all-rounder
These machines feature a comprehensive range of units, high feed speeds and high-performance motors. The glue application system allows you to switch easily between two colors or glue types (EVA, PU). What's more, the multifunction profile trimming offers rapid processing of radii and longitudinal edges. For frequent material changes, the multi-stage trimming unit and multi-stage scraper can be used. The profiLine modules offer you maximum flexibility. You define the task and we develop a machine that is perfectly tailored to your requirements.
Highlights
Universal melting unit: The glue can be changed quickly and easily using two special interchangeable containers for PUR cartridges or EVA granulate.
Top belt pressure as the basis for top quality, because the workpieces are optimally clamped for processing.
Images
-
![]()
Perfect cutting by the end trimming unit using rigid highprecision linear guides. Workpiece gap optimization
to achieve higher output (Option) -
![]()
Coil and automatic strip magazine for reliable material supply.
High availability and perfect glue quality via the Quickmelt gluing unit. -
![]()
High availability and optimum glue quality thanks to the melting unit -
![]()
Rough trimming unit / Trimming unit - For trimming the top and bottom edge material overhang -
![]()

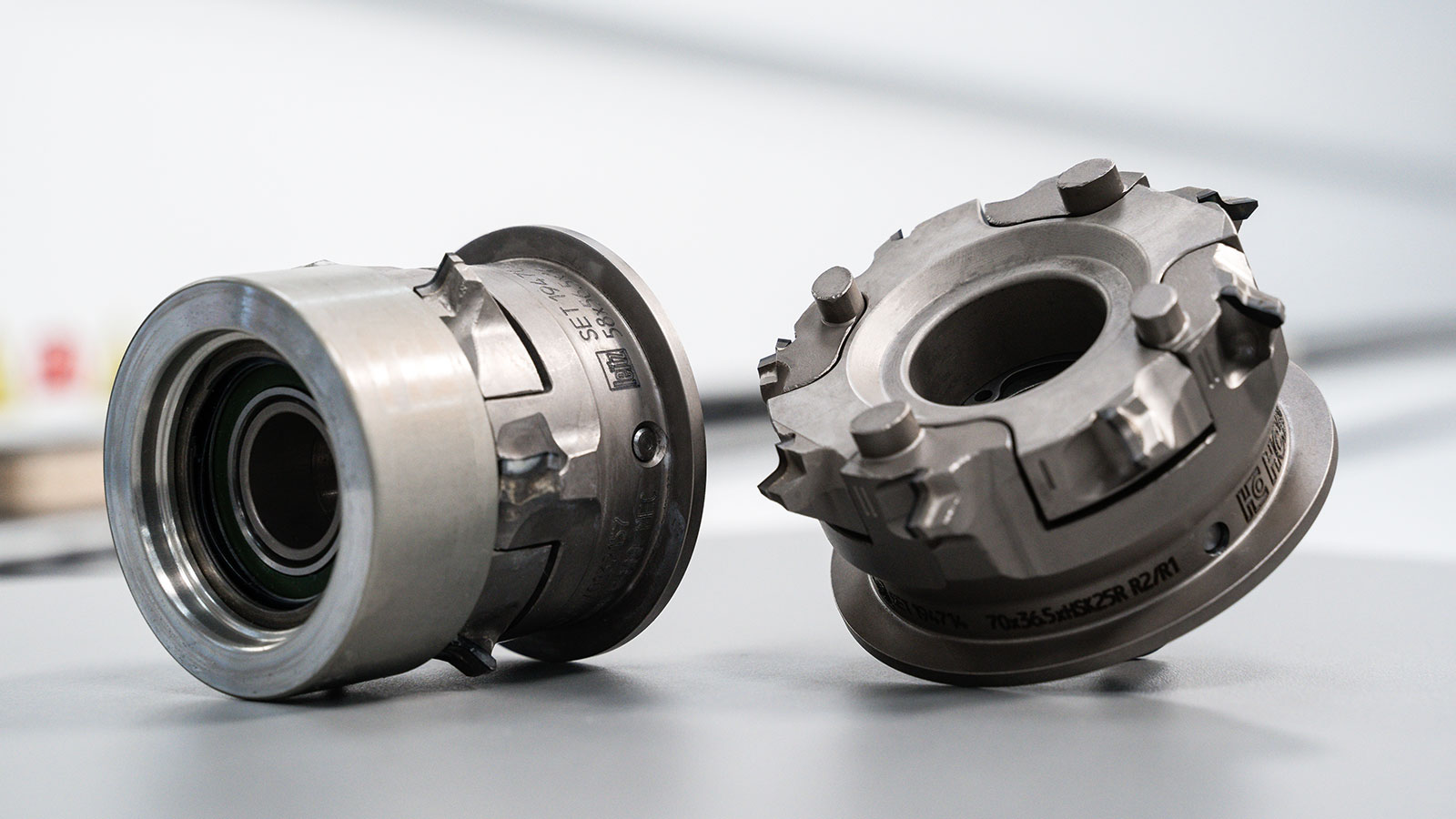

The multistage trimming and scraping units always offer the ideal radius and the best results -
![]()
For processing the overhang at the upper and lower edge as well as for corner rounding of e.g. high gloss surfaces -
![]()
The quality of your products is increased by the use of perfectly coordinated finishing units
Features
-
NEW: woodCommander5.1 Software for quick selection of the processing programs and the edge material
-
Flexible glue application system for easy changing of the color and glue type (EVA, PU)
-
Multifunctional profile trimming for corner rounding and flush trimming
-
Multi-stage technology for easy adjustment when changing materials
(As standard available at the edition-model) -
airTec unit for the perfect zero joint
-
Fully automated machine for excellent flexibility and easy adjustment
(As standard available at the Highflex-model)
Technical Data
| model 1650 FC | model 1660 FGC - 1670 FGC | |
|---|---|---|
| Machine length [mm] | 5,773 | 6,273 - 6,773 |
| Feed speed [m/min] | 8 - 20 | 8 - 20 |
| Workpiece width [mm]* in case of thickness 8 - 22 mm | 70 | 70 |
| Workpiece thickness [mm] | 8 - 60 | 8 - 60 |
| Edge thickness coils [mm] | 0.3 - 3 | 0.3 - 3 |
| Edge thickness strips / solid strips [mm] | 0.4 - 12 | 0.4 - 12 |
* depends on the workpiece thickness
| model 1650 E - 1660 E | model 1650 HF | model 1660 HF | |
|---|---|---|---|
| Machine length [mm] | 5,773 - 6,573 | 5,773 | 6,273 |
| Feed speed [m/min] | 8 - 20 | 8 - 20 | 8 - 20 |
| Workpiece width [mm]* in case of thickness 8 - 22 mm | 70 | 70 | 70 |
| Workpiece thickness [mm] | 8 - 60 | 8 - 60 | 8 - 60 |
| Edge thickness coils [mm] | 0.3 - 3 | 0.3 - 3 | 0.3 - 3 |
| Edge thickness strips / solid strips [mm] | 0.4 - 12 | 0.4 - 15** | 0.4 - 15 |
* depends on the workpiece thickness
** Assembly-dependent
(Previous product name: Edge banding machines Ambition 1600)
Software
-
![]()
Edgeband Management Set: The edgeband assistant
The edge material and all related information at a glance
Clear management and unique identification of edges in the rack (incl. residual lengths)
Reduced setup times thanks to faster edge changes
-
![]()

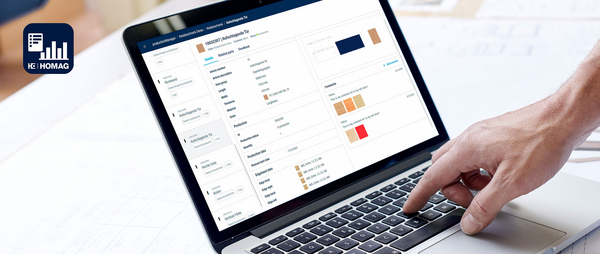

materialManager
All material data and stocks managed clearly in just one digital application
Central material management in the company
Integrated use of material data
Here's how your colleagues produce
Videos
Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.
» Privacy Policy
Mehr Flexibilität durch schnellen und sortenreinen Klebstoffwechsel
Schneller Wechsel zwischen Klebstoffarten und -farben bei der Kantenanleim-Maschine EDGETEQ S-380
-
![]()
Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.
» Privacy PolicyKantenanleimmaschine mit Werkstückrückführung LOOPTEQ O-300
Mit der EDGETEQ S-380 erhalten Sie genau das Kanten-Ergebnis, nachdem Sie gesucht haben!
Brochures
Product Comparison
Edge banding machine
|
|
|
|
| |
|---|---|---|---|---|---|
| EDGETEQ S-200 | EDGETEQ S-240 | EDGETEQ S-300 | EDGETEQ S-380 | profiLine | EDGETEQ S-500 Optimat | profiLine | |
| Feed rate adjustable [m/min] | 8-11 | 11 | 8-14 | 8-20 | 16-20 (25) |
| Workpiece width min. [mm] * in case of thickness 8-22 mm | 70 | 70 | 70 | 70 | 60 |
| Workpiece thickness [mm] | 8-60 | 8-60 | 8-60 | 8-60 | 8-60 |
| Edge thickness coils [mm] | 0,3-3 | 0,3-3 | 0,3-3 | 0,3-3 | 0,3-3 |
| Edge thickness strips / solid strips [mm] | 0,3-3 | 0,4-6 | 0,4-8 | 0,4-15 | 0,3-12 (20) |
| Details | Details | Details | Details | Details |
