Turning elements in a single movement
The WEINMANN butterfly turning table offers the ideal solution for turning your elements, allowing you to process both sides. Once the first side has been processed, the element is transferred to the second assembly table where it is completed.
Benefits
- Suitable for a wide range of applications including wall, roof, floor and gable elements as well as automatic detection of element thicknesses
- Faster turning process – within just 90 seconds
- Safe turning operation that protects the workpiece without the use of a crane
- Ergonomic work sequence thanks to short distances and optimum heights
Images
-
![]()
Option: roof/ ceiling clamping units -
![]()

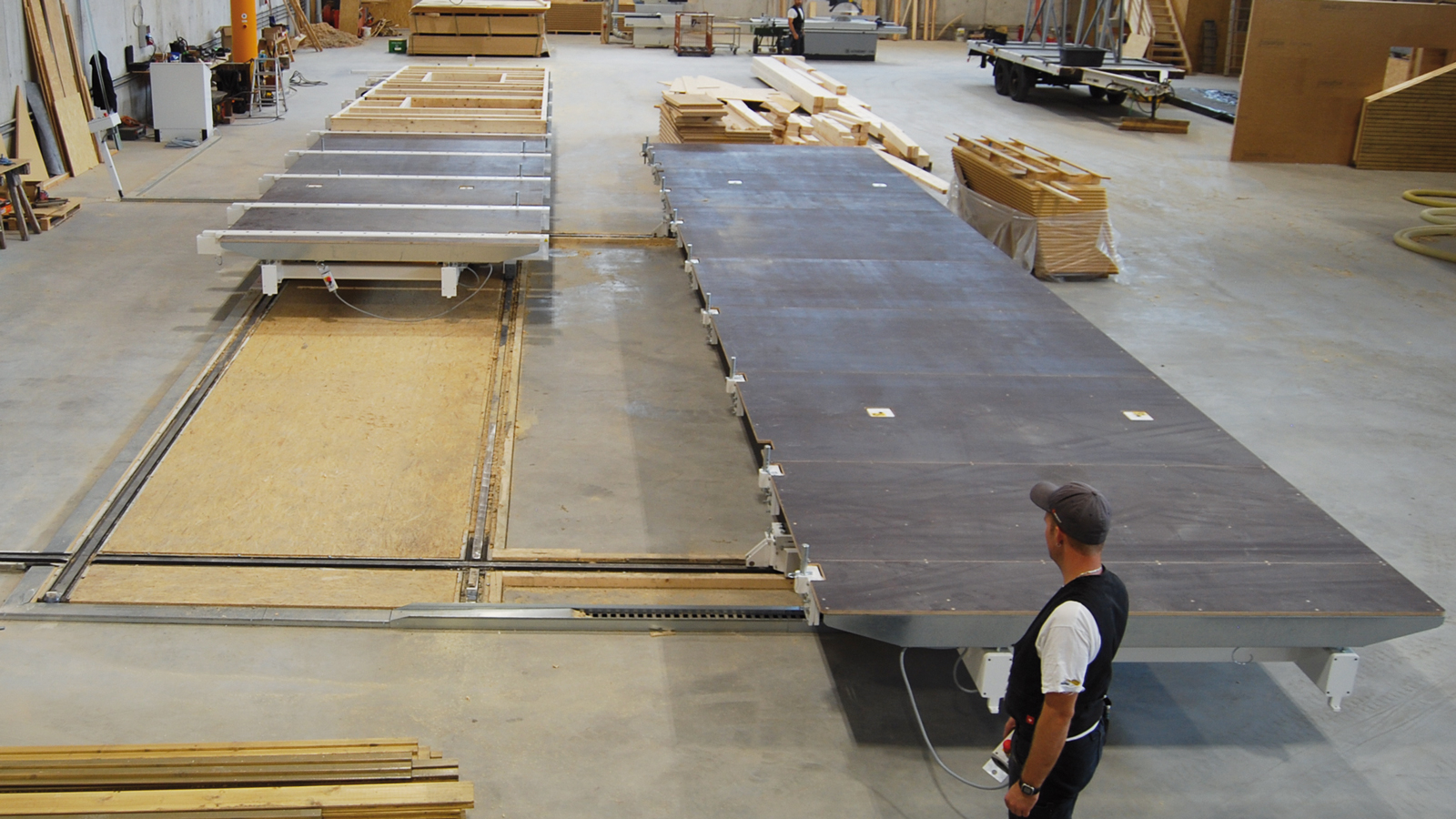

Manufacturing of the frame work and sheathing on the feeder table. -
![]()

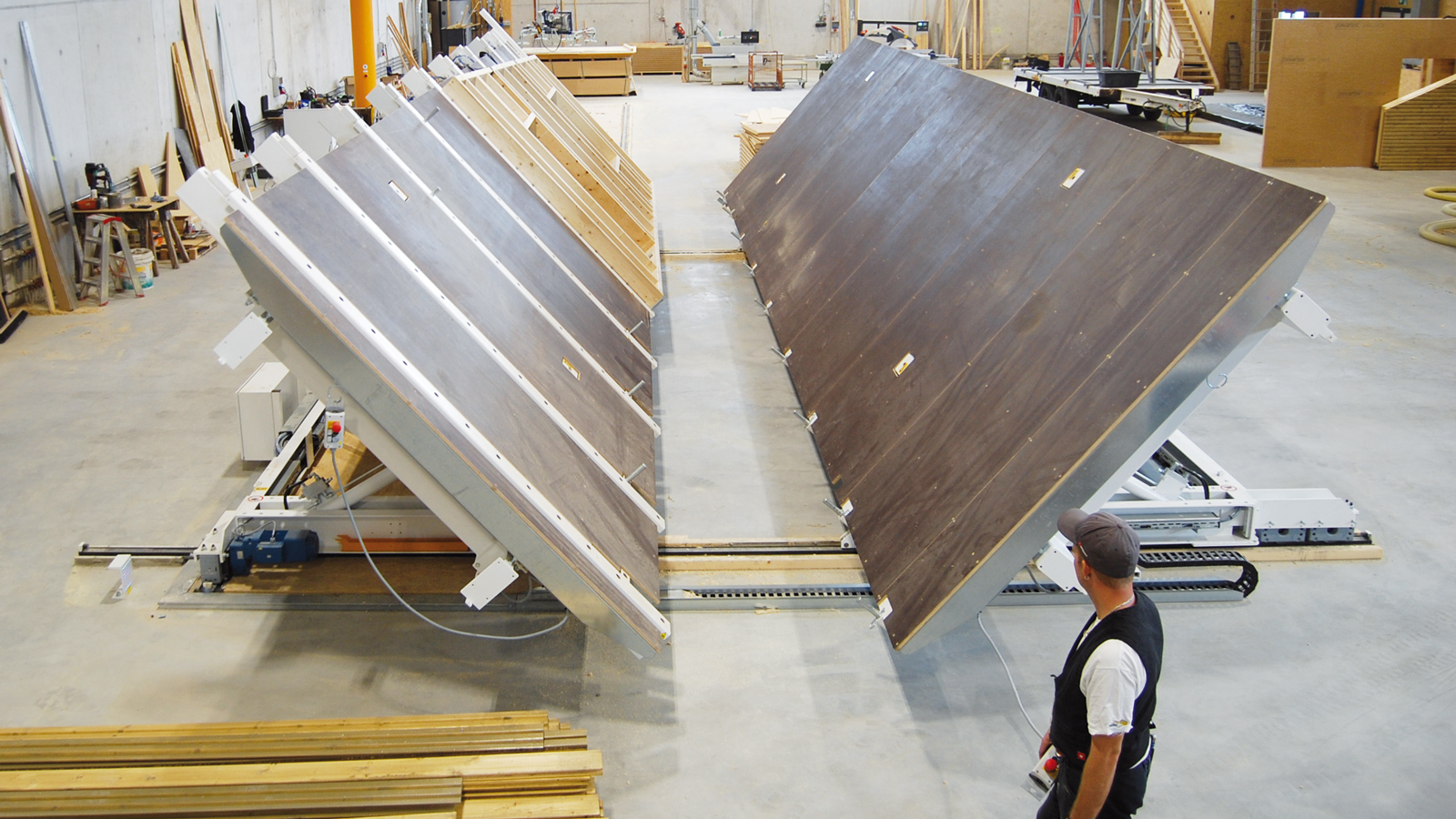

Feeder and receiving table stand up to turn the element. -
![]()
Installation and insulation will be installed and the element will be closed. -
![]()
Automated clamping of the frame work with clamping beams. -
![]()
Option: Universal clamps for clamping the top and bottom plates as well as oblique and short timber. -
![]()
Elements can be aligned at the correct angle at the X stop. -
![]()

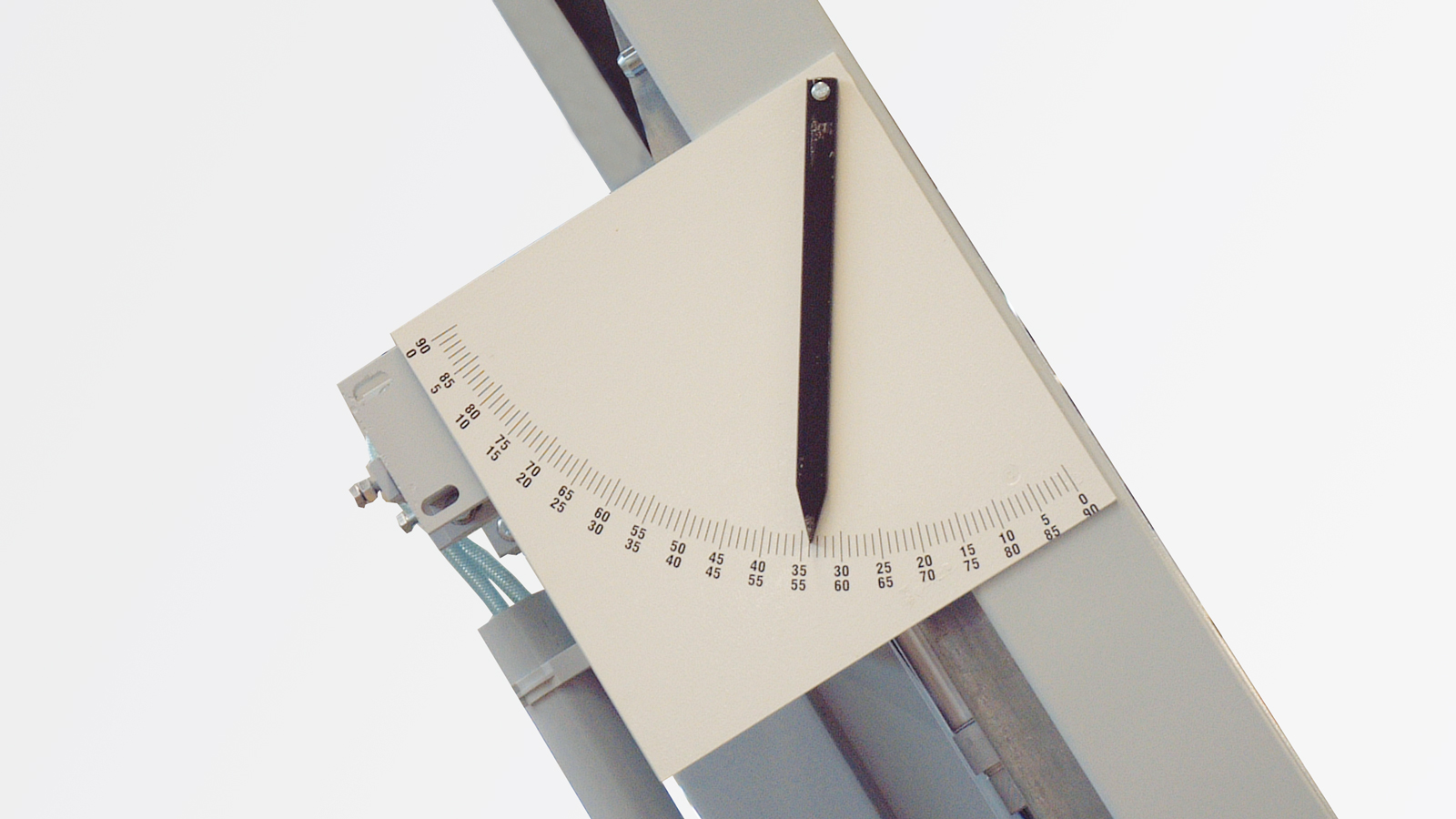

Display with division of degrees for precise adjustment of the required tilt. -
![]()

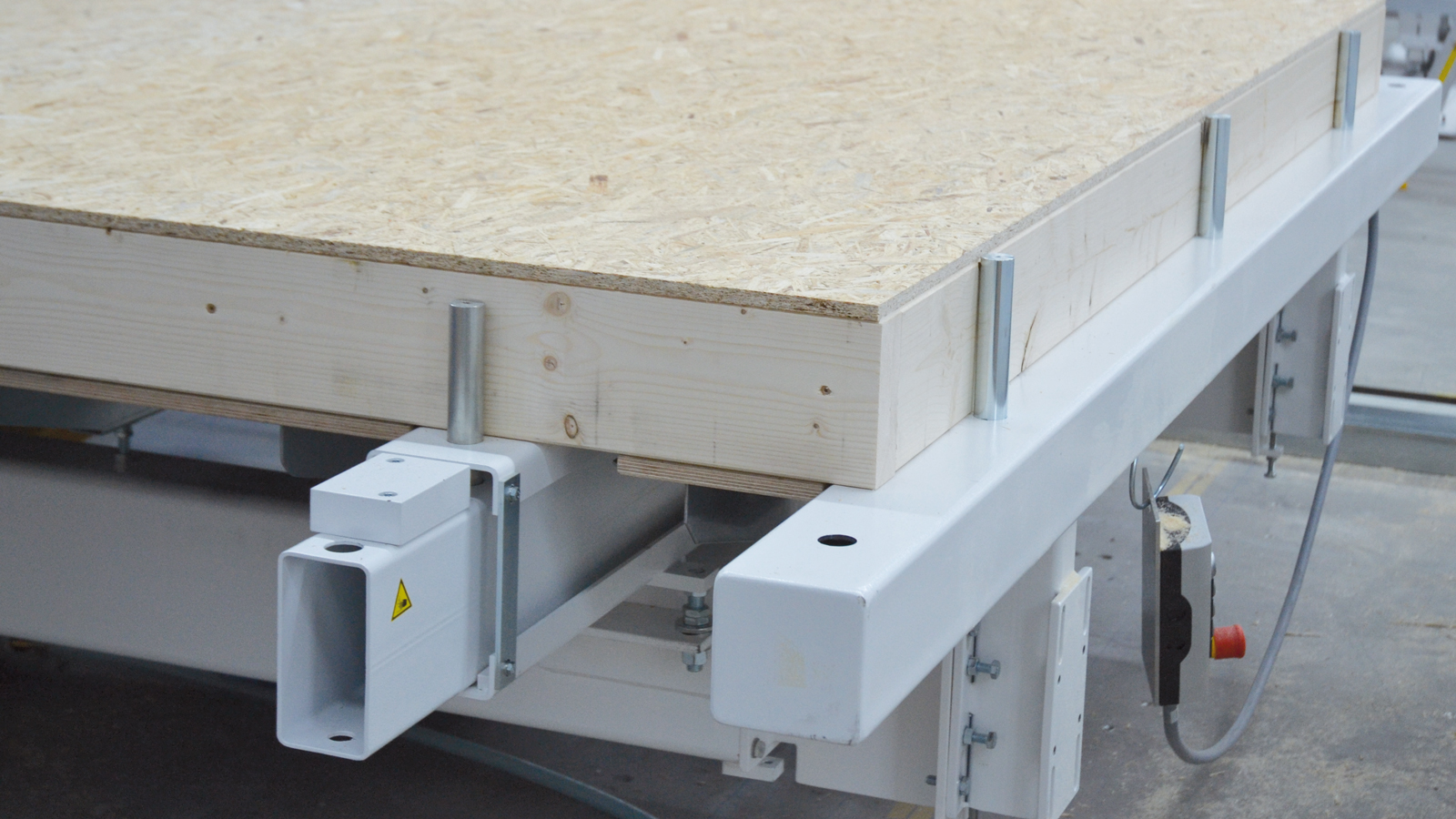

Various pin lengths and height-adjustable pins for different elements. -
![]()
Continuous X stop allows precise alignment of even roof and ceiling elements.
Features
-

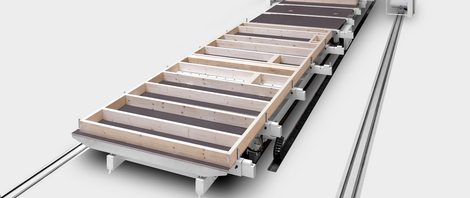

Butterfly turning table consisting of two assembly tables to enable efficient work in parallel on two tables
-
The frame work and the first element side are completed on the first assembly table and transferred to the second table
-
The two assembly tables face one another during the tilting operation and the element is transferred from table 1 to table 2
-
Sufficient space to enable work on both assembly tables, as the tables can be moved into different positions
-
Robust and durable for heavy elements use due to its stable design
Technical Data
| Processing height [mm] | 730 |
| Clamping range [mm] | 400 - 3,800 |
| Element length [m] | 1.5 - 12 |
| Element weight [t] | 3.5 up to 5 [t] possible as an option |
All technical data are without engagement!
