The universal tool for carpenters
It is in small and medium-sized carpentry businesses in particular that the WEINMANN carpentry table really achieves its full potential. The BUILDTEQ A-300 offers a flexible all-round solution for anyone manufacturing wall, gable, roof and floor elements, frame walls and roof dormers in timber frame construction.
Benefits
- Work on two short elements in parallel thanks to the two clamping areas
- Work safely thanks to solid non-slip planking
- Suitable for heavy elements thanks to its stable design
- Improved comfort thanks to an ergonomic processing height
- Achieve high levels of productivity thanks to reduced changeover times for different wall heights
Images
-
![]()
Enables frame works to be manufactured easily. -
![]()

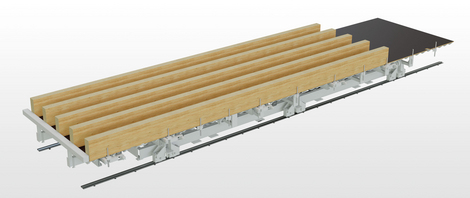

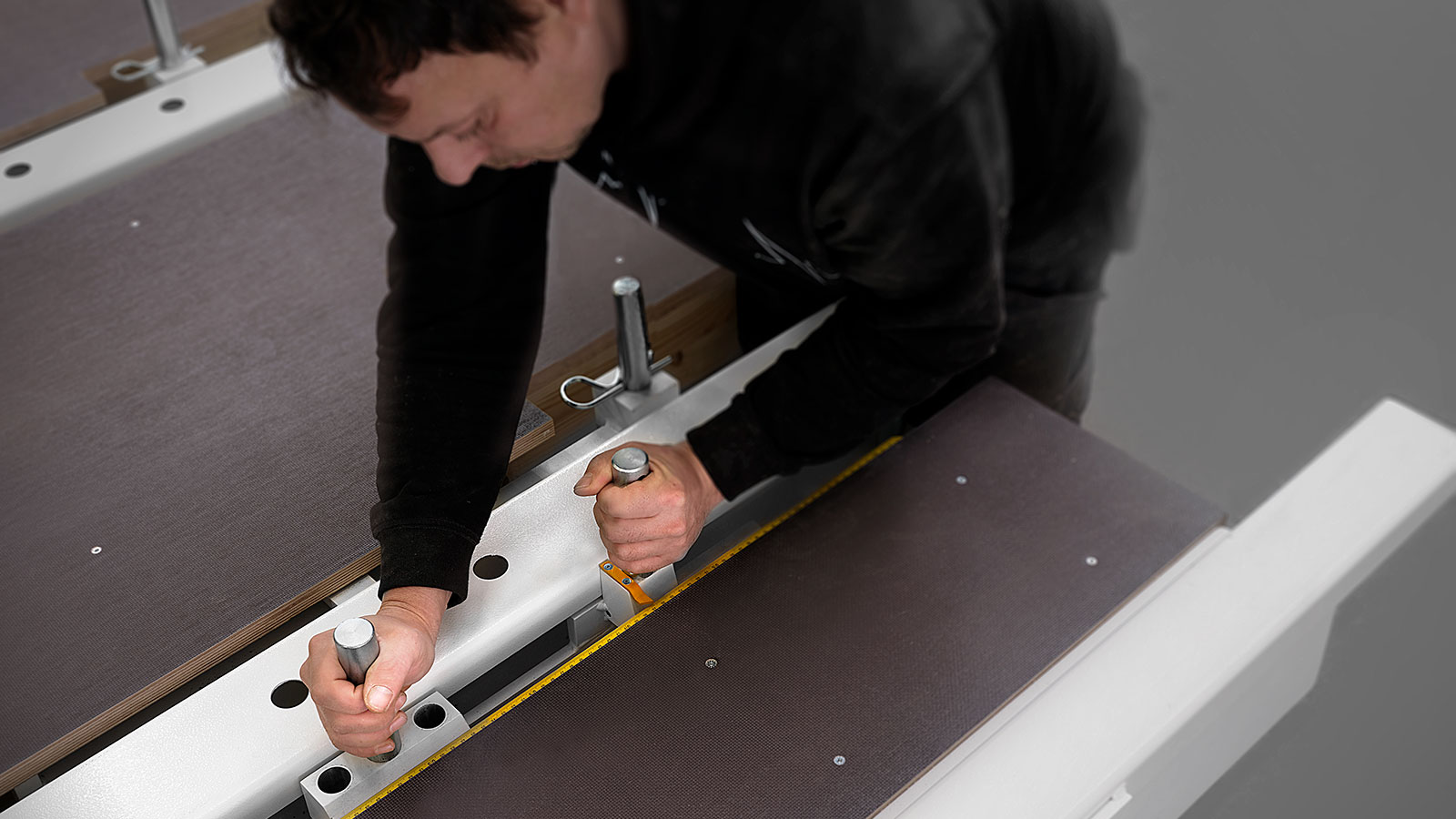

Option: roof/ ceiling clamping units -
![]()

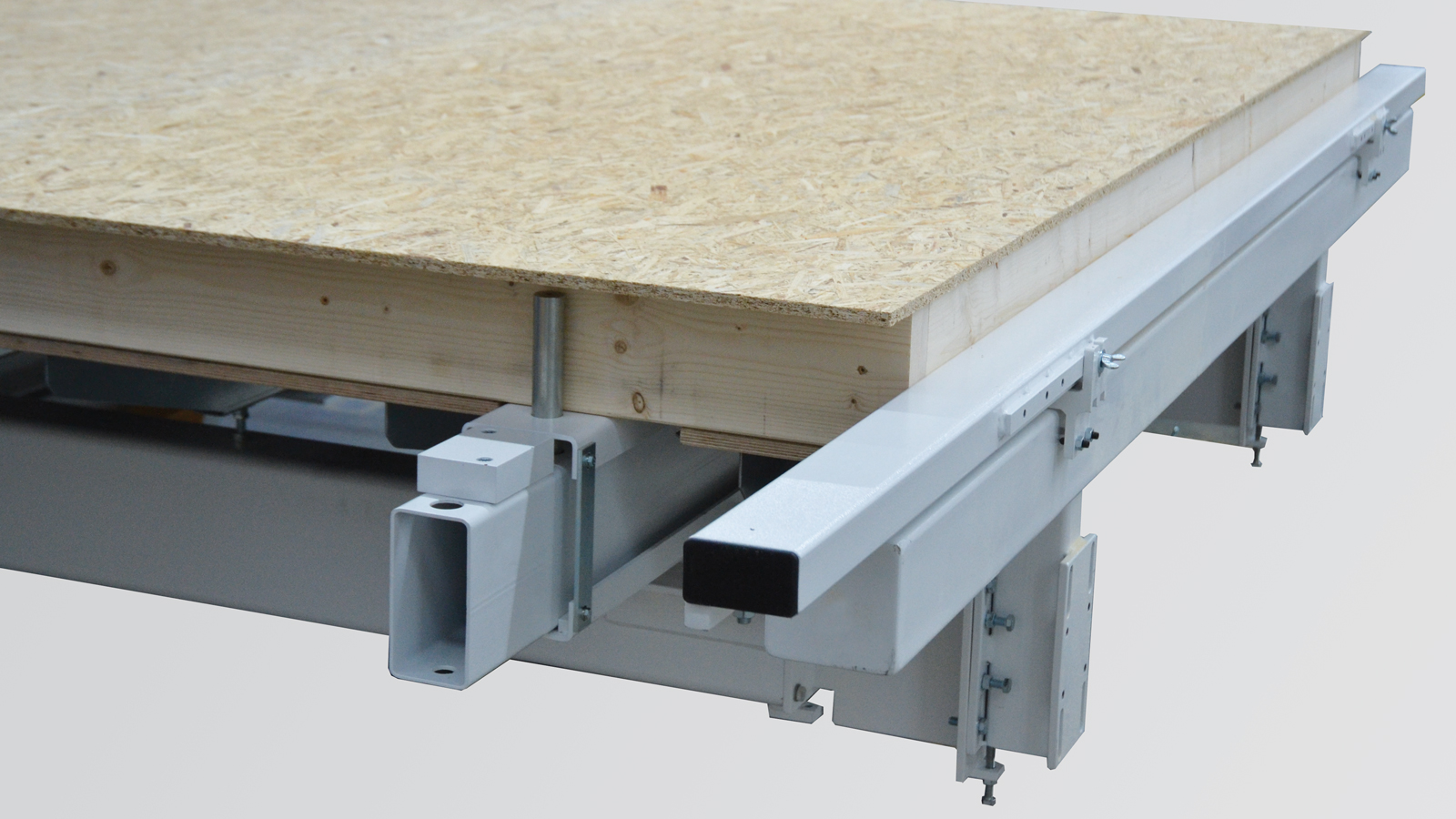

Continuous X stop allows precise alignment of even roof and ceiling elements. -
![]()

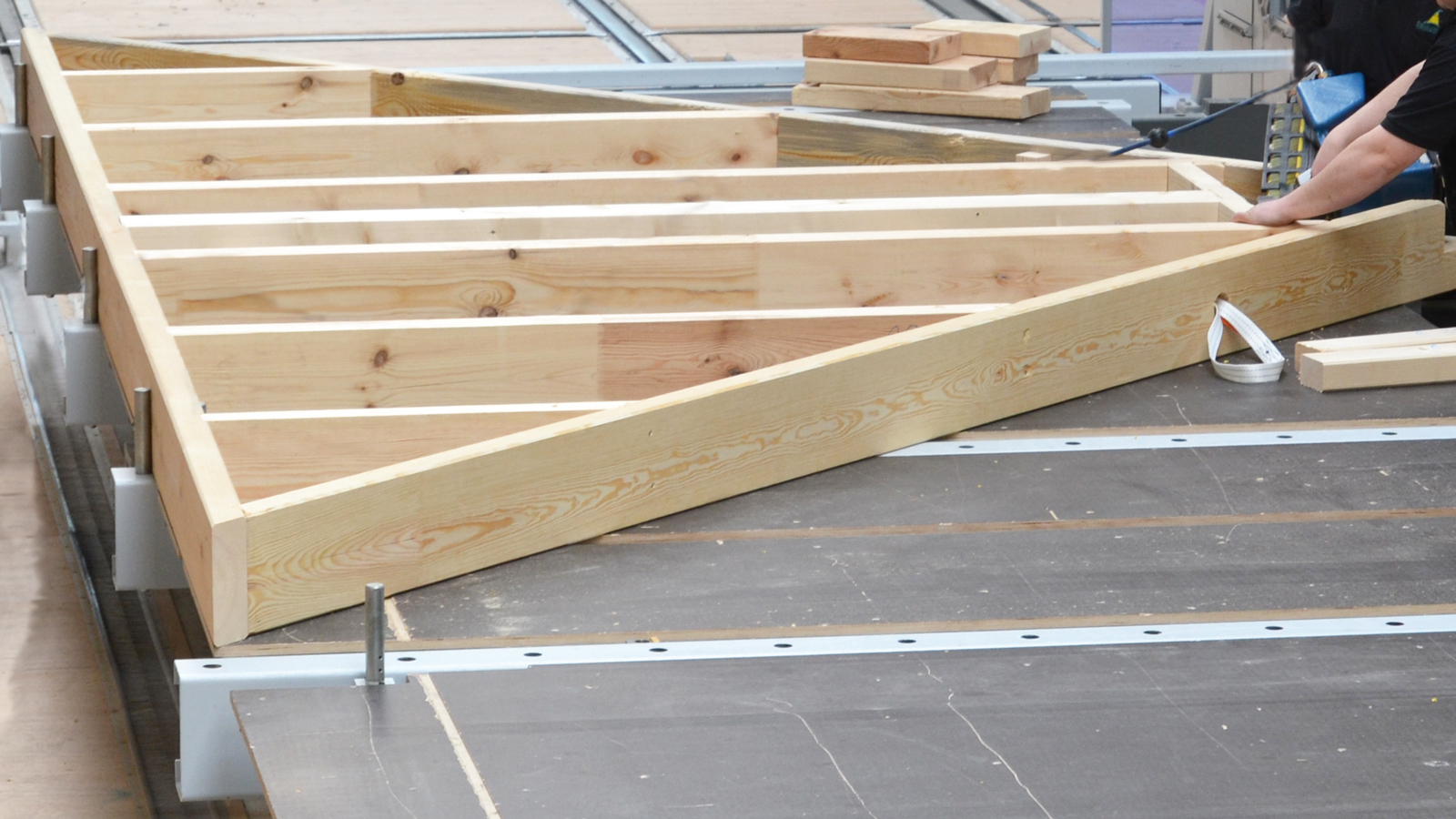

Simultaneous production of two elements on one work table with two clamping areas. -
![]()

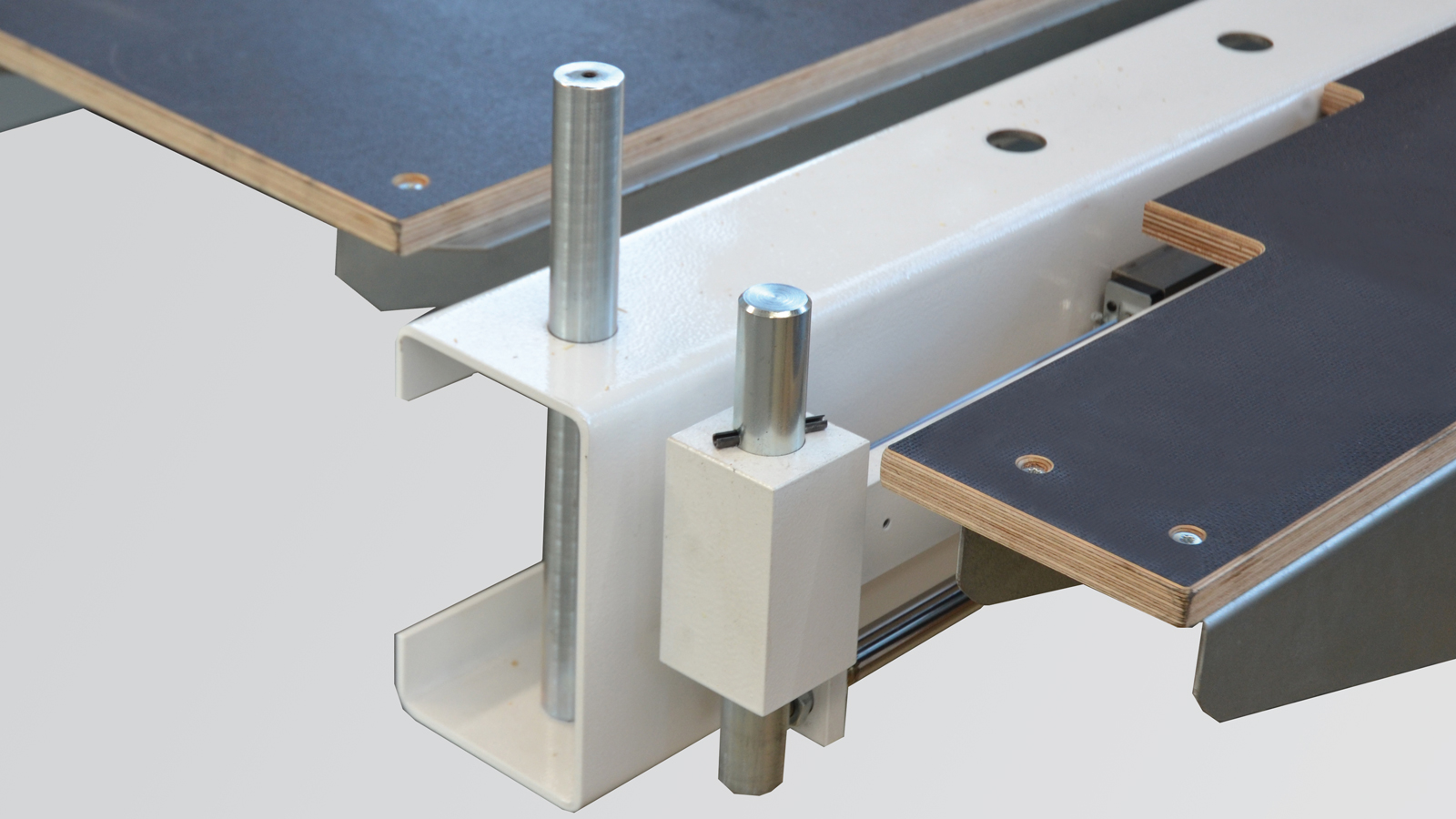

Various pin lengths and height-adjustable pins for different elements. -
![]()

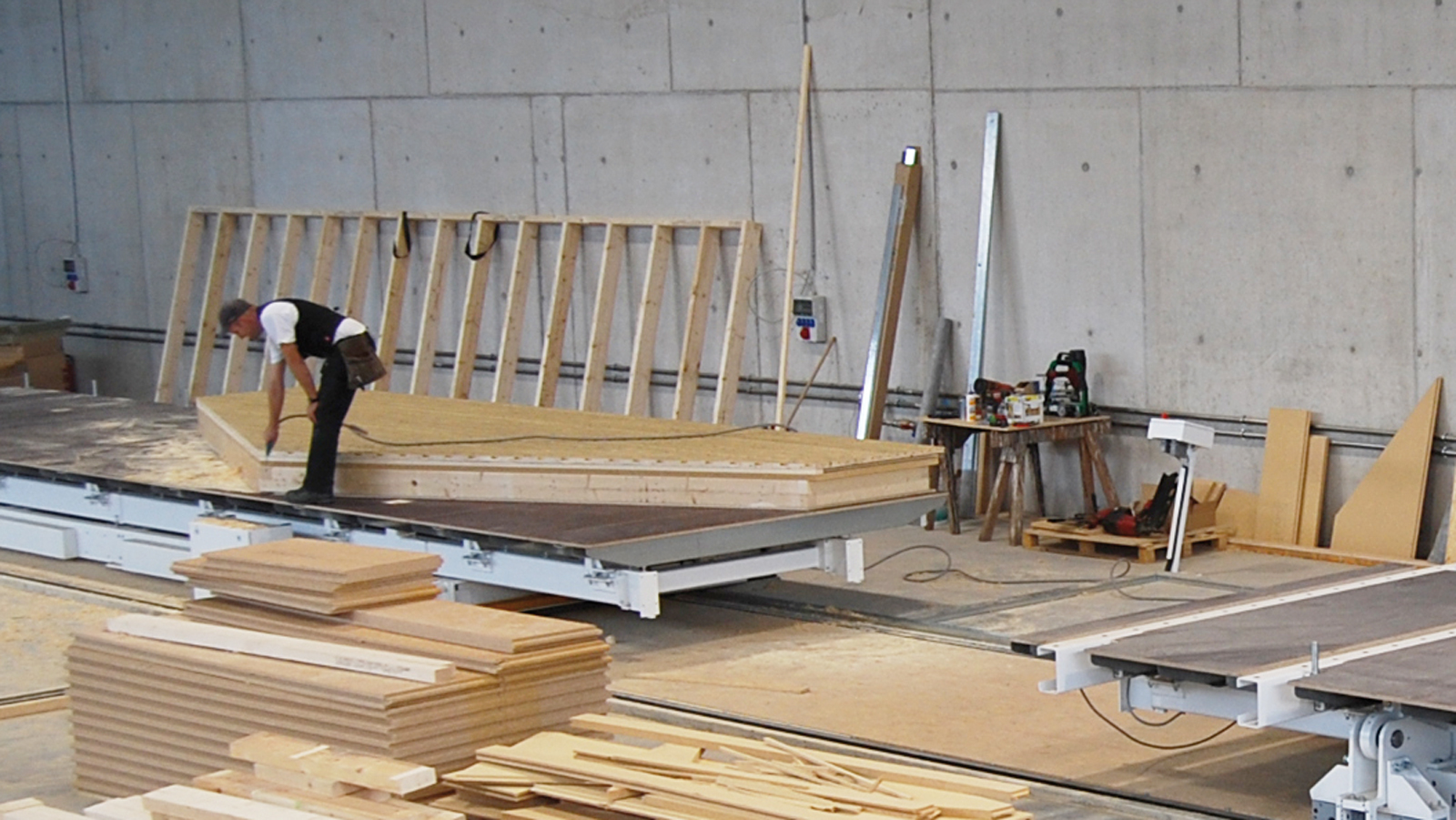

Solid, non-slip sheathing provides a high level of work safety. -
![]()

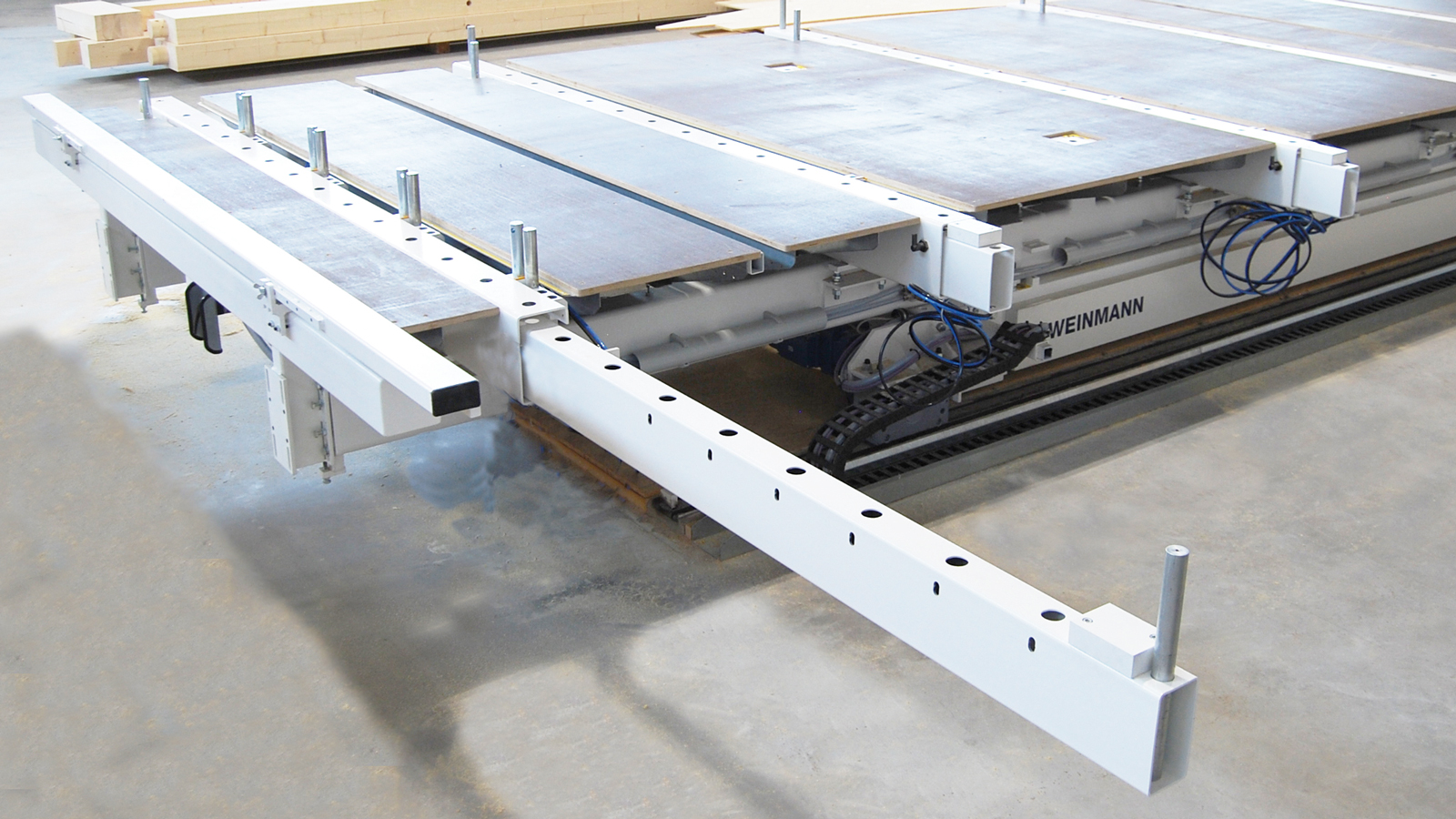

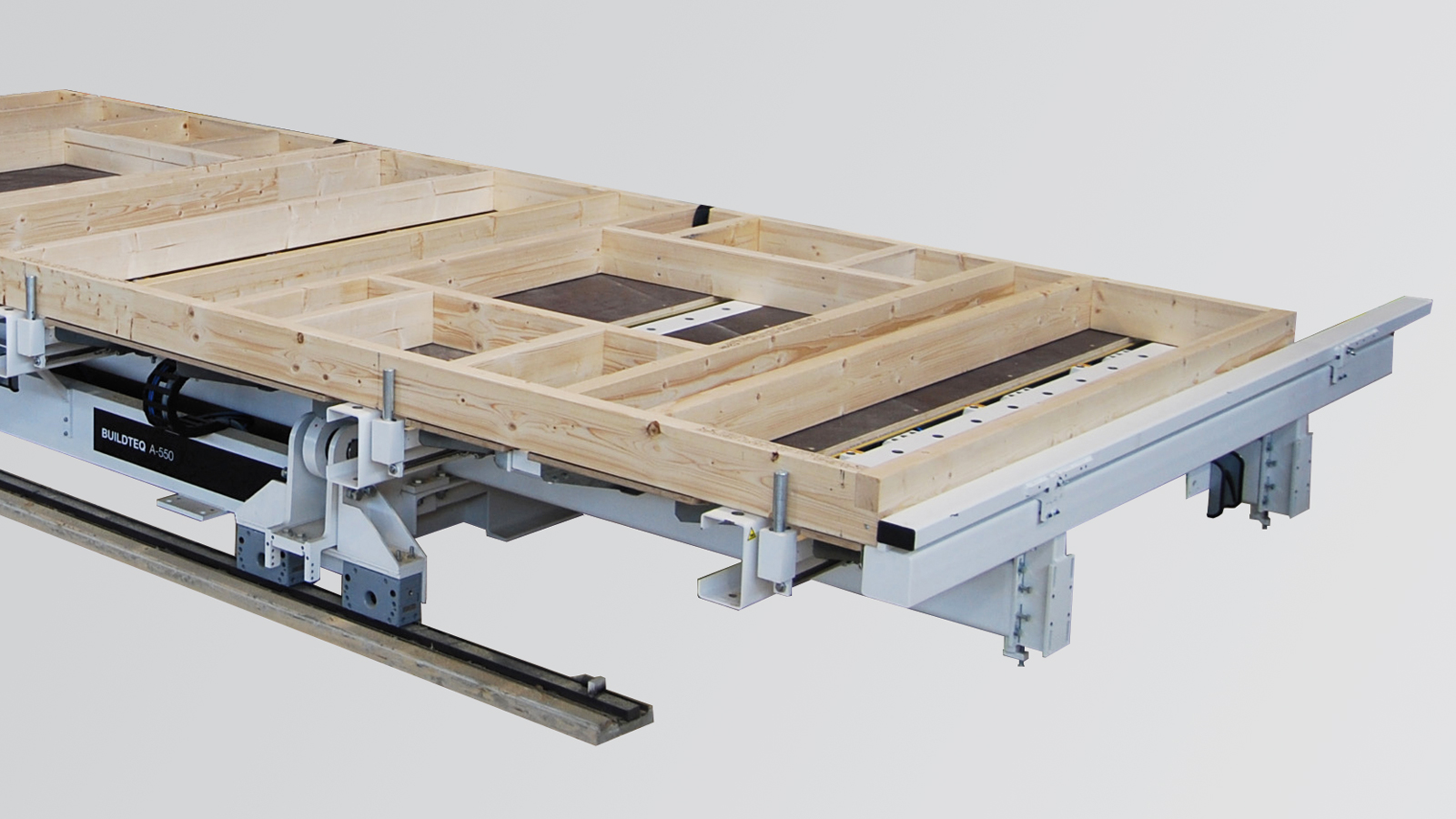

Automated clamping of the frame work with clamping beams. -
![]()

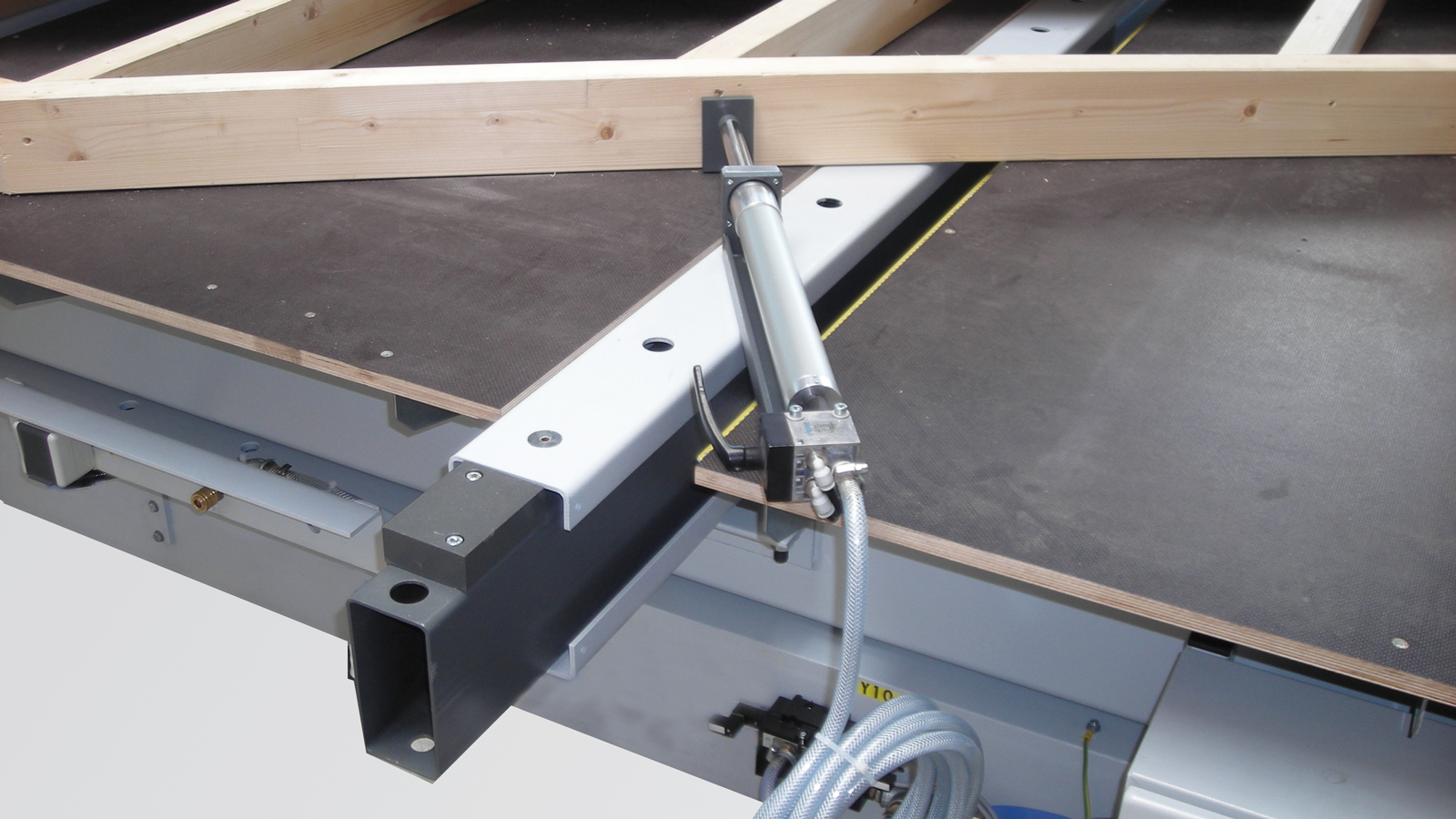

Option: Universal clamps for clamping the top and bottom plates as well as oblique and short timber.
Features
-

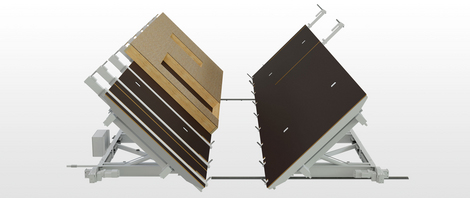

Can be expanded at any time as a butterfly turning table, compact system or a larger production System
-
Option: Align and position the beams for roof/ceiling elements with precision using roof and ceiling clamps
-
Hydraulic tilt function (option): Adjust the roof slope to create roof dormers and to remove the element using the overhead crane without causing any damage
-
The table is available in lengths of 7, 8, 10 and 12 m
-
Square alignment of the elements at optional stops
Technical Data
| Processing height [mm] | 730 |
| Clamping range [mm] | 400 - 3.800 |
| Element length min [m] | 1.5 |
| Element length max [m] | 12 |
| Element weight [t] | 3,5 |
All technical data are without engagement!
(Previous product name: Carpentry Table WTZ)
Here's how your colleagues produce
Videos
Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.
» Privacy Policy

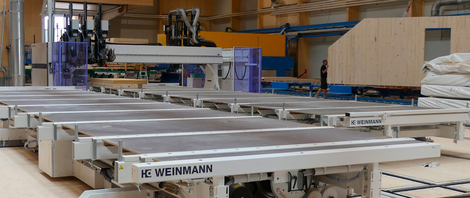

WEINMANN compact line
