WEINMANN Multifunction Bridge WALLTEQ M-500

WEINMANN Multifunction Bridge WALLTEQ M-500

An individually configurable all-rounder

The WEINMANN WALLTEQ M-500 can be configured to perfectly meet individual requirements. In addition to securing and processing planking, a host of other applications are possible, such as precutting panels, solid wood processing, screwing and gluing.

Benefits

  • Processing of a wide range of materials without setup times in the fields of timber frame construction, sandwich components, SIP and solid wood elements
  • Equipped for the future: can be expanded with additional processing units at any time
  • Comprehensive processing thanks to a 12-slot tool changer

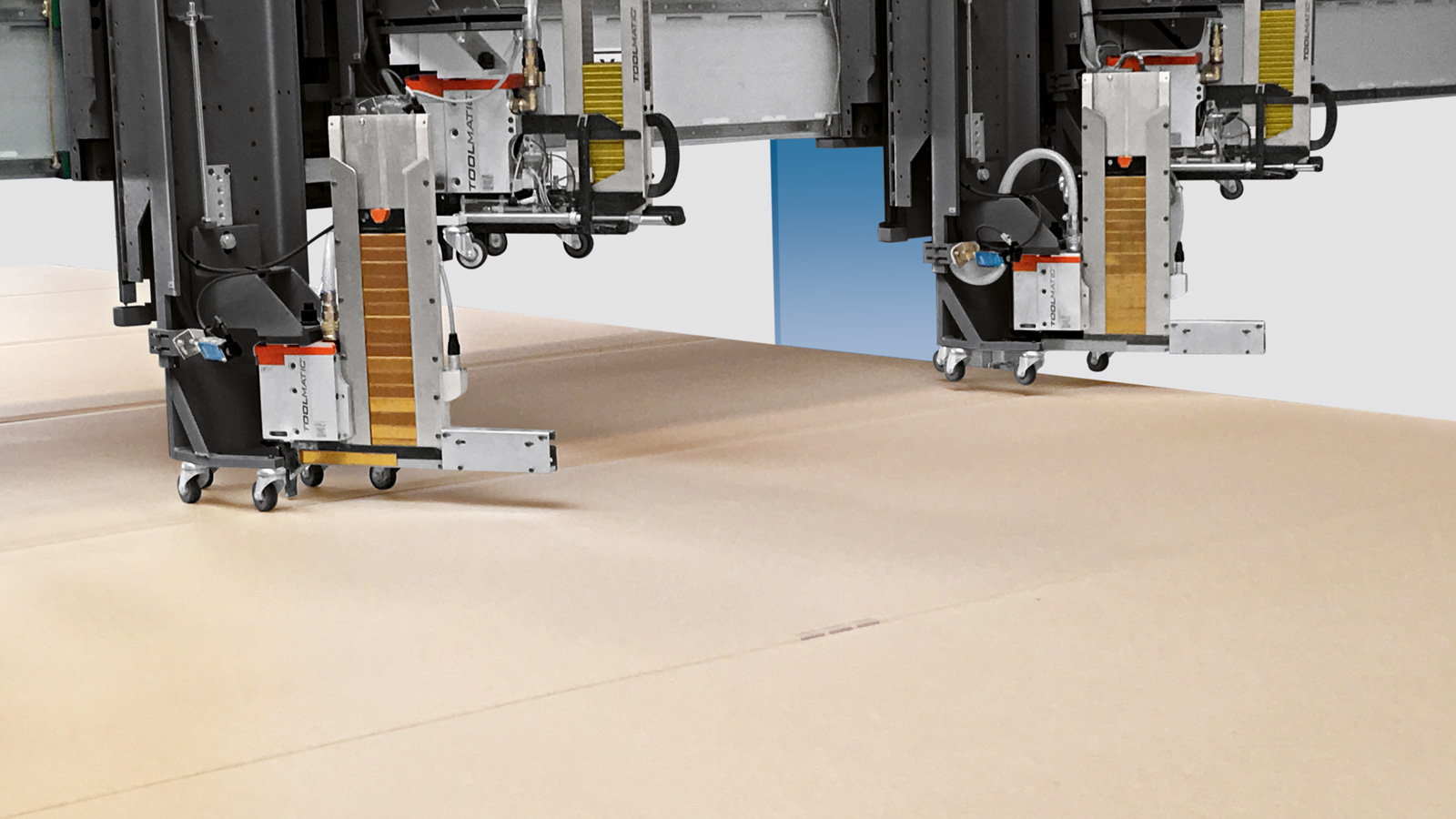

  • Time savings due to simultaneously fastening with 2 identical units
  • Fully automatic transfer of data from all popular CAD programs for timber work
  • Easy to operate with intuitive powerTouch user interface

Features

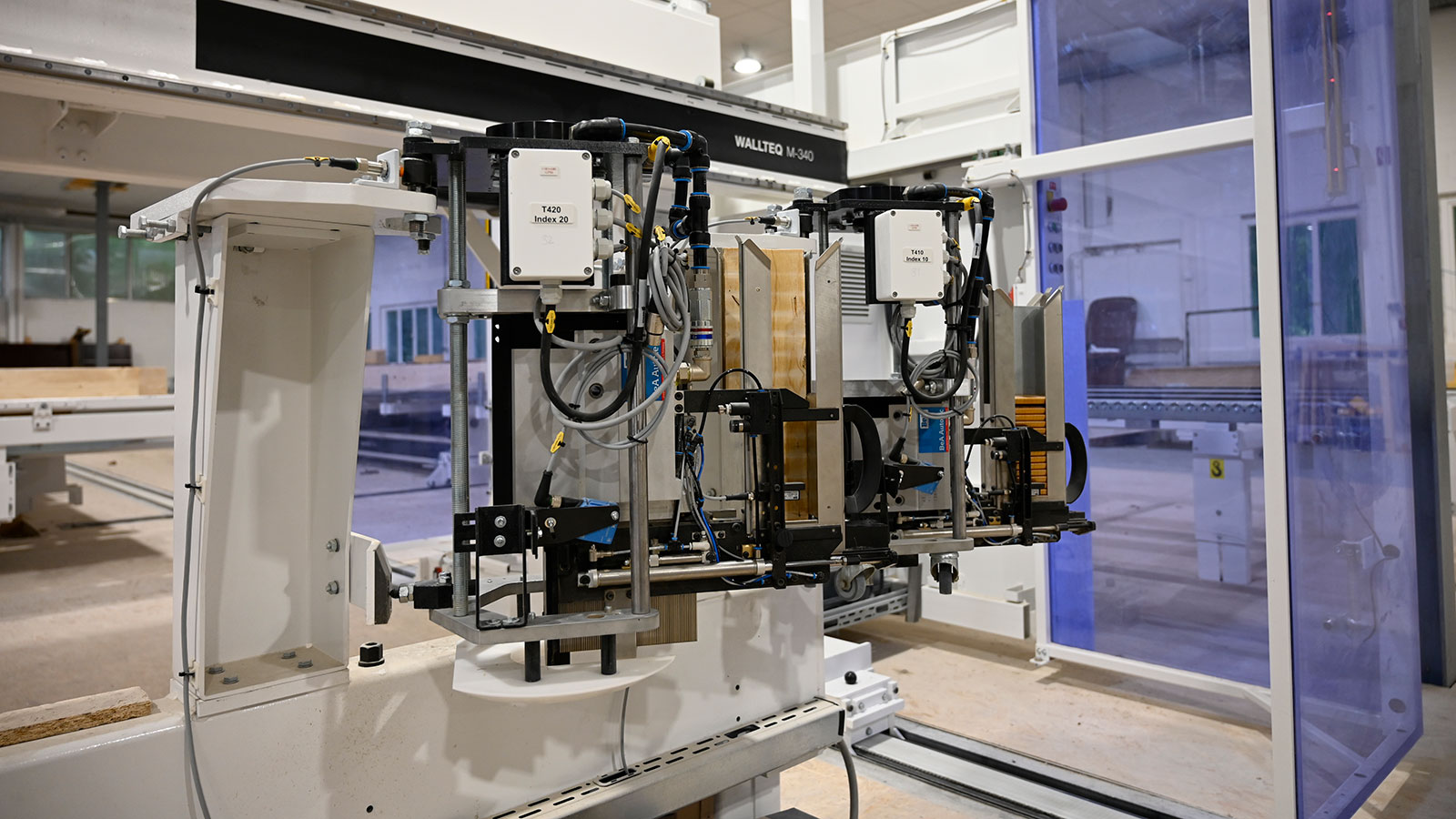

  • fastenerSwitch
    The first quick change system for fastening units

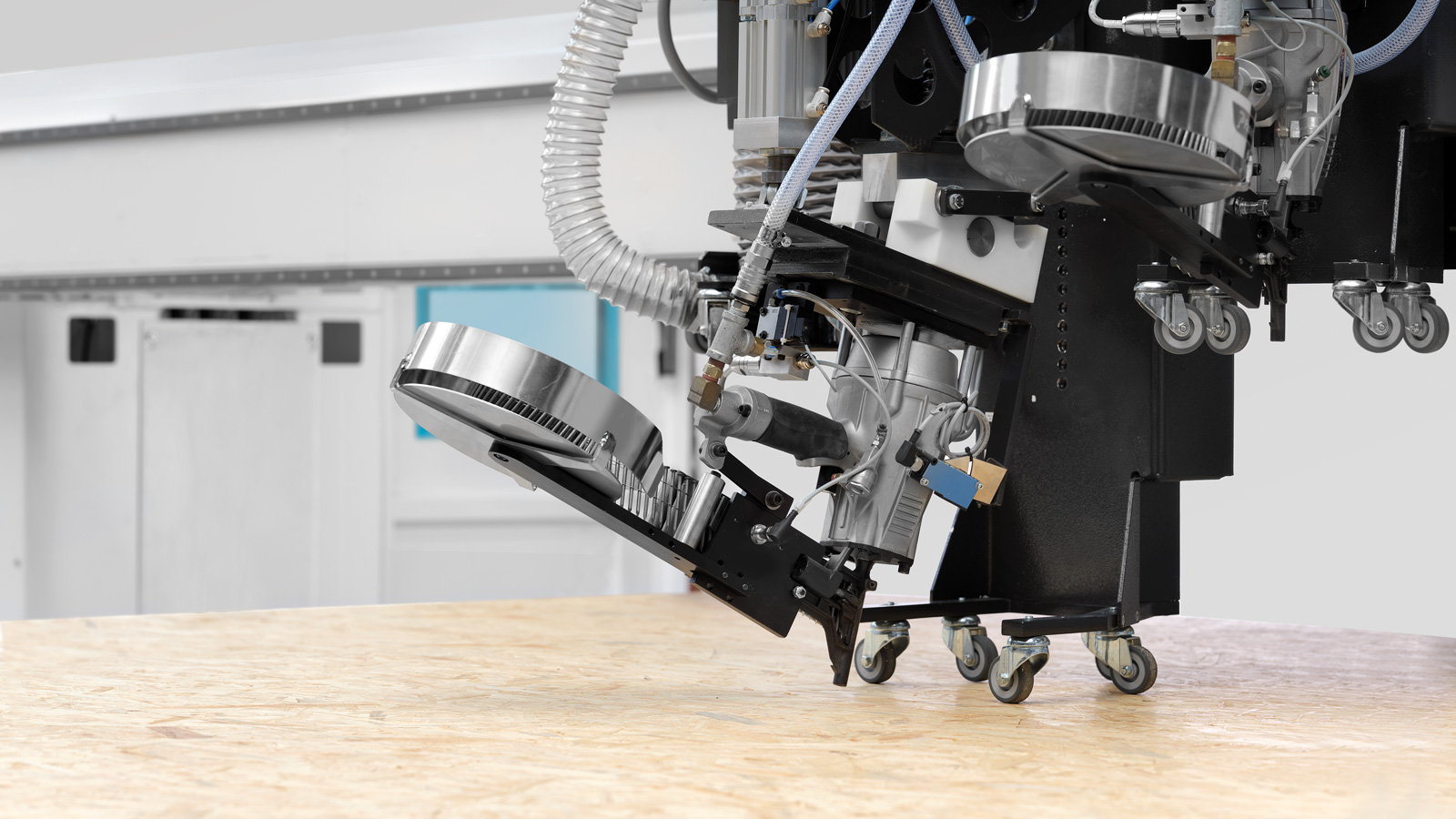

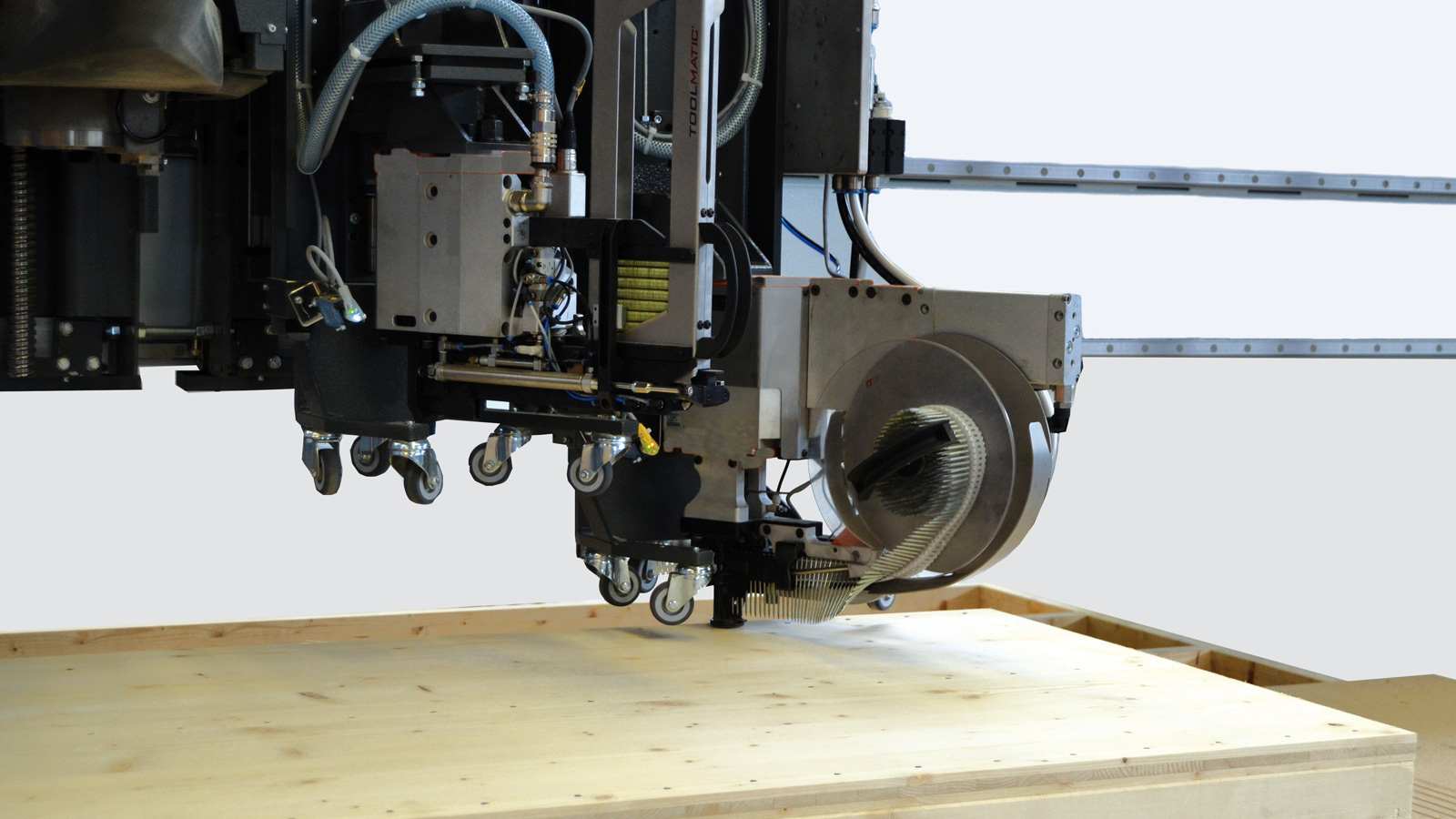

  • Wide range of processing types: drilling, sawing, trimming, marking, labeling, PU gluing, screwing, stapling and nailing

  • The fully automatic tool changer provides space for up to 12 tools, which can be selected according to individual requirements

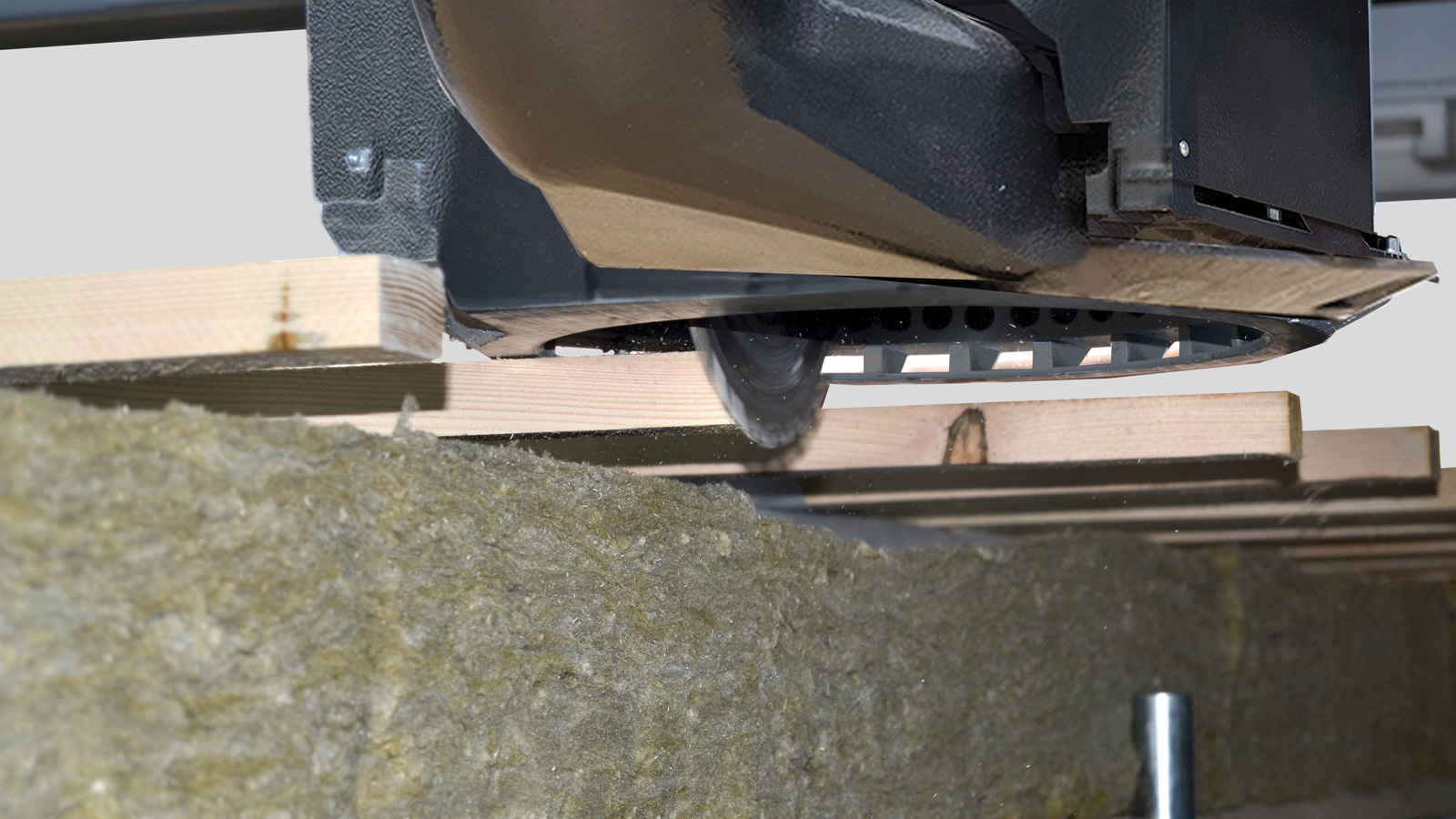

  • 18.5-kW tool spindle and optional FLEX25 sawing unit up to 200-mm cutting depth

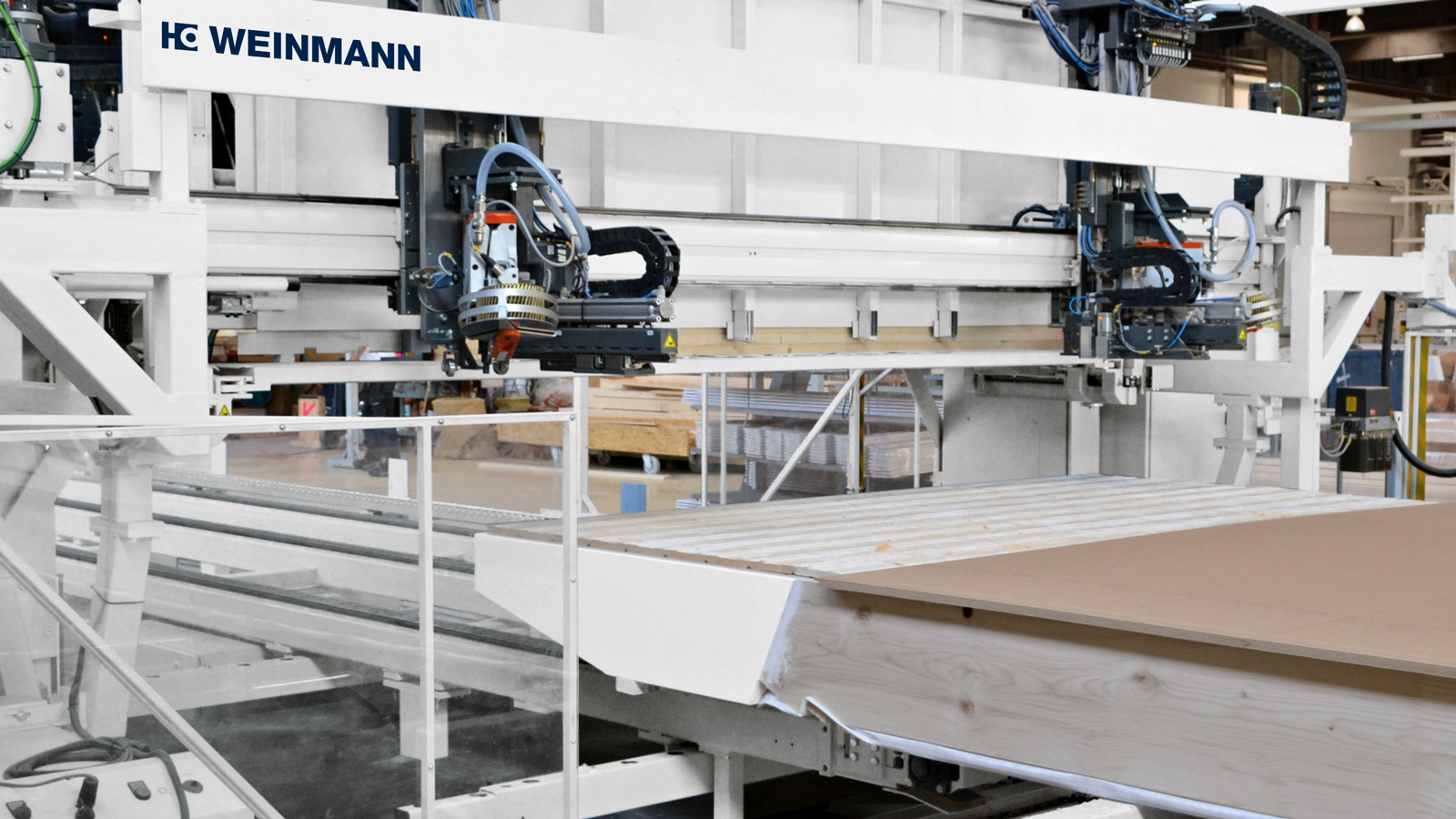

  • LatTec option: Fully automatic positioning and attachment of battens and shuttering on a beam or rafter framework

  • Can be combined with individual table concepts: Elements can be processed on multiple work tables enabling easy integration in a production line

Technical Data

Max. processing height [mm]500
Max. processing width [mm]3,200
optional: 4,200
Processing length [m]customer specific up to 50, or greater lengths possible

All technical data are without engagement!

(Previous product name: Multifunction Bridge WMS 150)
